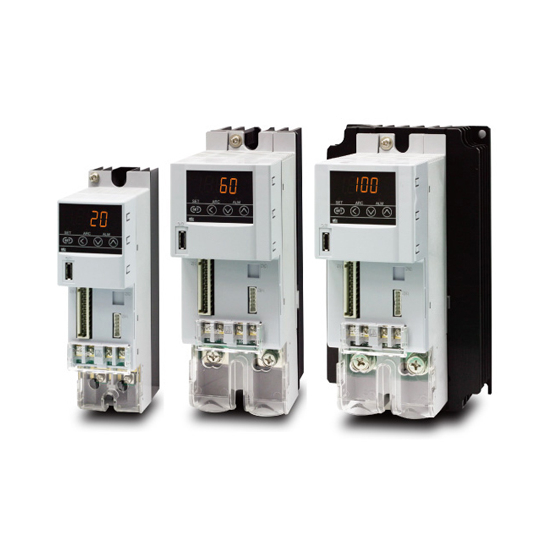

Maximum load capacity: AC20A, AC30A, AC45A, AC60A, AC80A, AC100A, AC150A, AC200A
Optimal for heater power control - Power supply voltage: AC100-240V - Control method: Phase control, zero-cross control - Compatible with loader communication - Compatible with serial communication - Transmission output compatible - Easy setup via front display and operation keys - Compliant with UL and CE marking *Note: Compliance with CE marking is achieved by using the specified noise filter.
Inquire About This Product
basic information
Rated Current: AC20A, AC30A, AC45A, AC60A, AC80A, AC100A * AC150A, AC200A are available upon inquiry Control Method: Phase Control / Zero Cross Control (switchable) Applicable Load: a) Phase Control: Resistive Load, Primary Side Control of Transformer (Magnetic Flux Density approximately 1.25T or less) b) Zero Cross Control: Resistive Load Input Signal: DC 4-20mA, DC 1-5V, DC 0-10V, Voltage Pulse Input DC 0/12V Output Mode: Phase Angle Proportional, Voltage Proportional, Voltage Squared Proportional, Constant Current Control, Power Proportional Control Standard Functions: Automatic/Manual Switching, Slope Setting Function, Soft Up/Soft Down Function, External Contact Input (DI): 1 Point, Two Position Control, Loader Communication Optional Functions: Alarm Output: 1 Point, Heater Disconnection Alarm, Current Limiter, Transmission Output: DC 0-10V, Communication Function: RS-485 <General Specifications> Load Power Supply Voltage: AC85-264V (including power supply voltage fluctuations) Rated: AC100-240V Weight: Approximately 0.45kg (20A, 30A), Approximately 1.2kg (45A, 60A), Approximately 1.8kg (80A, 100A)
Price range
Delivery Time
Applications/Examples of results
Control the heater in combination with a temperature regulator.
Detailed information
-
All models have obtained CE marking and are certified for overseas safety standards (UL, cUL). *Regarding CE marking, compliance with the CE mark is achieved by using the specified noise filter.
-
It is equipped with a variety of standard features including automatic/manual switching, slope setting function, soft up/soft down function, external contact input, two-position control, and loader communication.
-
The loader communication function is standard-equipped. You can connect to a computer via USB using the converter COM-KG. Various settings and configuration values can be easily saved to the computer, and various configuration values can be uploaded from the computer to the THV-10. *Note: Loader communication is for setup purposes only. Do not use it for control or operation.
-
Using RS-485 communication, you can monitor and configure external devices. Monitoring of current values and power values, as well as parameter switching management based on control targets, can be performed externally. <Monitoring Items> Current value, power value, power frequency, external gradient setting monitor, alarm monitor, input signal monitor, phase angle ratio monitor, etc. <Configuration Items> Internal manual settings, internal gradient settings, soft up/down time, various alarm setting values, current limiter values, output mode selection, RUN/STOP, etc.
-
You can add a transmission output function (optional). Since it can be output as an effective value, it can be easily connected to measuring instruments such as recorders and digital indicators.
