Defect detection and quality evaluation implemented! Simultaneous inspection of the front and back significantly improves cross-sectional shape acquisition capability!

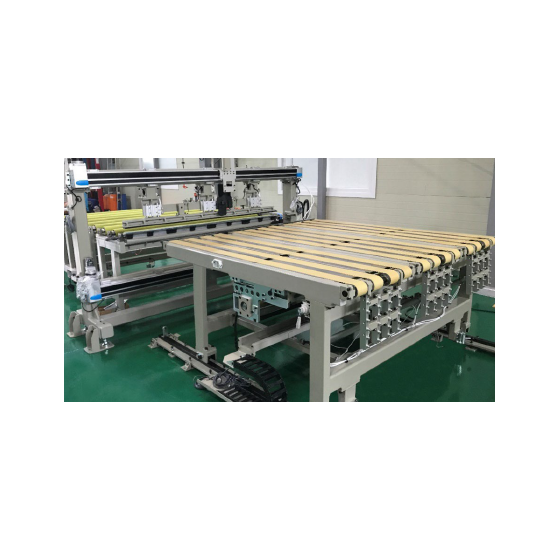

This product is a device that continuously measures the cross-sectional shape of welded steel plates and pinholes, evaluating welding quality based on quality standard thresholds. The ultra-high precision inline profile measurement device extracts the cross-sectional shape of the welds, conducting defect detection and quality evaluation based on quality standard thresholds. A transmission-type sensor detects through-hole defects in the welds. By combining the ultra-high precision inline profile measurement device with our proprietary welding inspection logic, it is possible to achieve strict quality control of the welds. 【Features】 ■ Significantly improved cross-sectional shape acquisition capability through simultaneous inspection of the front and back surfaces ■ Online inspection monitoring function and past data storage function ■ Combination of the ultra-high precision inline profile measurement device and our proprietary welding inspection logic to achieve strict quality control of the welds ■ Enables online automatic inspection by integrating with existing equipment *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Device Specifications (Partial)】 ■Inspection Unit - Inspection Speed: 500mm/sec at 0.5mm pitch - Profile Measurement Resolution: X direction 5μm/pixel, Z direction 0.5μm - Inspection Width: Field of View Width 16mm ■Device - Approximate Dimensions of Inspection Device: (Reference) 2800W × 700L × 1800H *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
We are chosen by the following customers: - Automobile manufacturers - Automobile-related parts manufacturers - Steel-related manufacturers *For more details, please refer to the PDF document or feel free to contact us.
