A submersible water level gauge that operates on 3-5VDC! Ideal for measuring water levels in rivers, ponds, and underground tanks! Due to its low power consumption, it can be used for extended periods!

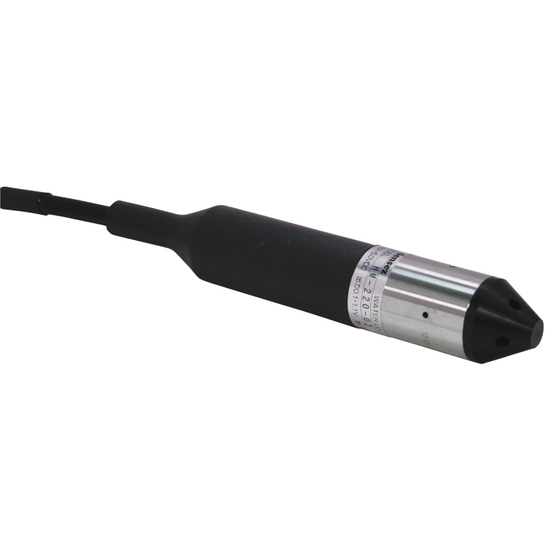

The HM220 series is a submersible level gauge that operates on 3V to 5V. It can be used for long periods with battery power or solar batteries. - Power consumption is below 2mA, making it perfect for battery operation - Built-in amplifier circuit with output ranging from 0.1V to 1.1V - Available in measurement ranges from 2m to 50m - The sensor part is made of SUS316, ideal for long-term observation in rivers - A high-precision type with an accuracy of ±0.1% F.S. can also be produced For more details, please download the catalog or feel free to contact us.
Inquire About This Product
basic information
Due to the analog output, the response time is quick, and the preheat operates in less than 1 second. It is suitable for long-term observations in rivers and ponds. It is also perfectly compatible with batteries and solar power for crisis management types. For more details, please download the catalog or feel free to contact us.
Price information
The price may vary depending on the number of units, so please contact us for more information.
Delivery Time
P4
Applications/Examples of results
■Open tank level measurement ■Underground tank water level measurement ■River water level observation ■Well/borehole water level observation ■Dam water level observation ■Lake water level observation
catalog（1）
Download All Catalogs
Company information
We consistently handle everything in-house from the design and development to the manufacturing and assembly of diffusion-type semiconductor pressure sensors. We respond quickly to the needs for small-lot custom products and are recognized for our unique value that sets us apart from major competing manufacturers.
