Ventilation and Deodorization Device "Q Pot" [No installation required & just place it for ventilation and deodorization!]
No construction required & a local exhaust purification device that reduces aerosols lingering indoors and helps with infection control! It forcibly exhausts the air that lingers indoors!

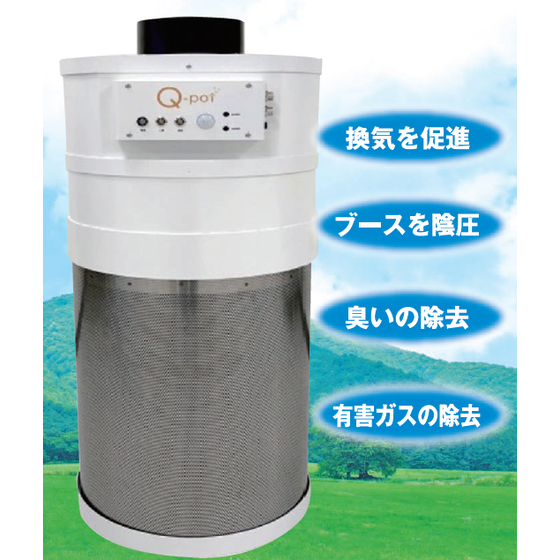

"Q-Pot" is a ventilation and deodorization device equipped with a filtration function using a HEPA filter. It has an airflow of over 5m³/min per unit, making it suitable for promoting ventilation as a measure against infectious diseases and for use as a simple negative pressure device. It comes with a lightweight self-extinguishing resin chimney, which can be fitted with a pipe directed towards an exhaust fan to forcibly expel stagnant air. 【Features】 ■ Forcibly expels stagnant indoor air to promote ventilation ■ Forcibly expels air from a sealed booth to create negative pressure ■ Instantly removes unpleasant odors through the adsorption power of activated carbon ■ Reduces the concentration of harmful gases to within acceptable limits through the adsorption power of activated carbon *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
**"Convenience of Q-Pot"** ■ Just place it → No ductwork required ■ Compact → Can be placed anywhere, takes up little space, localized placement, energy-saving (86W/unit) ■ Distributed installation → Suitable for large spaces, no duct required ■ Linked operation → Up to 6 units can start/stop simultaneously, power outlet can be one location ■ Motion sensor → Stops after a maximum of 40 minutes of no presence **Specifications (Excerpt)** ■ Dimensions: (N type) φ350×H830 (S type) φ300×H830 ■ Material: SS + baked paint ■ Chimney: φ150×L1000–2000 ■ Weight: Approximately 30kg ■ Power supply: AC100V ■ Operating noise: 55–65db ■ Airflow: 4–7m³/min/unit *For more details, please refer to the PDF document or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■Improvement of air quality ・Break rooms, shoe storage areas, laboratories, diaper changing spaces, printing factories, changing rooms ■Infection control measures ・Schools, kindergartens/nurseries, nursing facilities, hospital waiting rooms, evacuation shelters, accommodation facilities *For more details, please refer to the PDF document or feel free to contact us.
catalog（2）
Download All Catalogs
Company information
Our company specializes in the development and manufacturing of activated carbon deodorization devices and mist deodorization and sterilization devices. In addition to smoking booths with smoke removal functions that meet the Ministry of Health, Labour and Welfare standards for passive smoking measures, we design and install deodorization and sterilization devices for food factories, as well as infection control measures in hospitals. We hold patents for activated carbon and offer various technologies for our proposals. <Features of Activated Carbon Deodorization> 1. Strong deodorizing power: Activated carbon has many small pores that effectively absorb odors. It is effective against various smells, including tobacco odor. 2. Environmentally friendly: Activated carbon is made from natural materials (such as coconut shells and coal), so it does not use chemical substances. Used activated carbon can be reused, making it eco-friendly. 3. Low maintenance costs: Activated carbon can be used for a long time, so replacements are not frequently needed. Activated carbon devices are durable and easy to maintain. ーーーー Construction industry license: Tokyo Governor's Permit (General-2) No. 143426 Tokyo approval: "Management Innovation Plan" No. 22 Sanro Shou Shitei 443
