Flagship model for thin material and precision inspection, ultra-high precision ultrasonic thickness gauge.

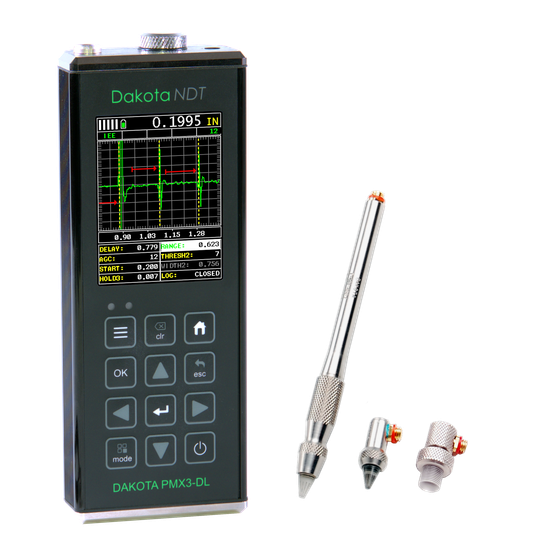

The PMX3-DL is the flagship model of an ultrasonic thickness gauge for thin and precision inspection, capable of measuring from 0.15mm thin materials to 9m thick materials, with a resolution of 0.001mm. While maintaining its appearance, the internal hardware has been completely renewed, significantly improving measurement accuracy, range, and processing speed. In addition to features such as A/B scope display, independent 3 gates, and scan mode, it also includes a new function called GAIN (TDG) SLOPE, which corrects sensitivity reduction based on propagation time, as well as adjustments for pulse voltage and damping. It supports power supply from mobile batteries and USB connectors of computers. It has an 8GB data logger built-in, allowing measurement data to be easily displayed on a PC. ■Features - Overwhelming measurement range from 0.15mm to 9m - A-scope displaying ultrasonic waveforms and B-scope displaying cross-sectional images - Compatible with various types of single-element probes, including pen types - High-resolution mode of 0.001mm - 'GAIN SLOPE' function optimal for measuring high-damping materials and thick objects
Inquire About This Product
basic information
■Specifications ・Measurement Range (Steel Equivalent) ◆Probe with Delay Material Interface Echo: 1.27–25.4mm Interface Echo Echo: 0.152–12.7mm ◆Contact Probe Pulse Echo: 1–9,000mm Echo Echo: 2.54–900mm Multi Echo: 2.54–150mm ・Display Resolution: 0.001mm ・Sound Speed Measurement Range: 310–18,542m/s ・Transducer: Single Element Transducer ・Screen Update: Color Model 60 times/second, Monochrome Model 25 times/second ・Dimensions: 64 (W) × 165 (L) × 32 (D) mm ・Weight: Approximately 383g (including batteries) ・IP Rating: IP65 (Dustproof and Drip-proof) ・Power Supply: Three AA Alkaline Batteries, USB Power Supply ・Warranty Period: 2 years (warranty applies to the main unit only) ・Functions (Common): Material List (38 items), Setup (64 items), Sensitivity Adjustment Scan Mode, Alarm Mode, Differential Thickness Measurement Mode Screen Capture, Data Logger (8GB) *For more details, please refer to the PDF document or contact us.
Price range
P4
Delivery Time
P3
Applications/Examples of results
■Precise thickness measurement of metals such as iron, stainless steel, aluminum, as well as glass, plastics, and ceramics ■Thickness measurement of curved sections and small diameter piping ■Thickness measurement of the substrate (base material) from the coating surface
