Next-generation precision ultrasonic thickness gauge achieves stable measurements at 0.001mm increments.

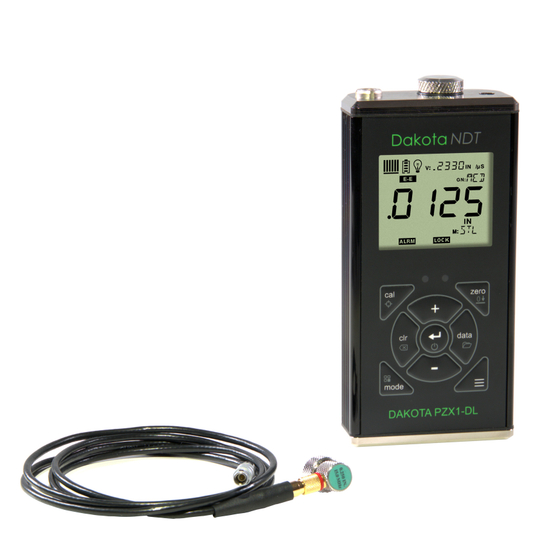

The PZX1-DL is a precision ultrasonic thickness gauge for inspection that can measure materials as thin as 0.15mm with a resolution of 0.001mm. With newly designed signal processing technology, it achieves higher accuracy and a wider measurement range compared to the old model PX-7. It is ideal for thickness measurements after machining parts where accurate thickness measurement is required. In addition to single-point and dual-point calibration, scan mode, alarm mode, and differential thickness measurement mode, it features sensitivity adjustment, sound velocity measurement mode, USB power supply, and a newly added pulse-echo mode that supports measurements from 2 to 900mm, allowing for precise thickness measurement of both thin and thick materials. The large-capacity data logger can store up to 10,000 measurement values. ■ Features - High-resolution thickness gauge with 0.001mm display - Astonishing measurement range from 0.15mm to 900mm - Sound velocity measurement mode for various materials, including resin and cast iron - Optimal size for Japanese people, who generally have smaller hands compared to Westerners - Supports both AA batteries and USB power supply - IP65 dustproof and drip-proof performance with a 5-year warranty
Inquire About This Product
basic information
■Specifications ・Measurement Range (Equivalent to Steel) ◆Delay Line Probe Echo-Echo Mode: 0.152 to 12.7mm Interface Echo Mode: 1.52 to 25.4mm Plastic Mode: 0.127 to 6.35mm ◆Contact Probe Pulse Echo Mode: 2 to 900mm Echo-Echo Mode: 3 to 150mm *The measurement range varies depending on the material and transducer. ・Display Resolution: 0.001mm ・Sound Velocity Measurement Range: 310 to 18,542 m/s ・Transducer: Single Element Transducer ・Screen Update: 10 times/second ・Dimensions: 64 (W) × 131 (L) × 32 (D) mm ・Weight: Approximately 312g (including battery) ・IP Rating: IP65 (Dustproof and Drip-proof) ・Power Supply: Two AA alkaline batteries, USB power supply ・Warranty Period: 5 years ・Functions: Material List, Sensitivity Adjustment, Scan Mode, Single Point and Two Point Calibration Alarm Mode, Differential Thickness Measurement Mode, Sound Velocity Measurement Mode, Data Logger (10,000 entries) *For more details, please refer to the PDF document or contact us.
Price range
P3
Delivery Time
P3
Applications/Examples of results
■Thickness measurement of metals such as iron, stainless steel, aluminum, castings, as well as glass, plastic, and ceramics ■Sound velocity measurement of cast iron, ceramics, and resins
Line up（2）
| Model number | overview |
|---|---|
| PZX1-DL | Base model |
| PZX1-DL-RS232C | Model equipped with RS-232C output function |
