High-grade model of the ZX series with excellent basic performance and a variety of features.

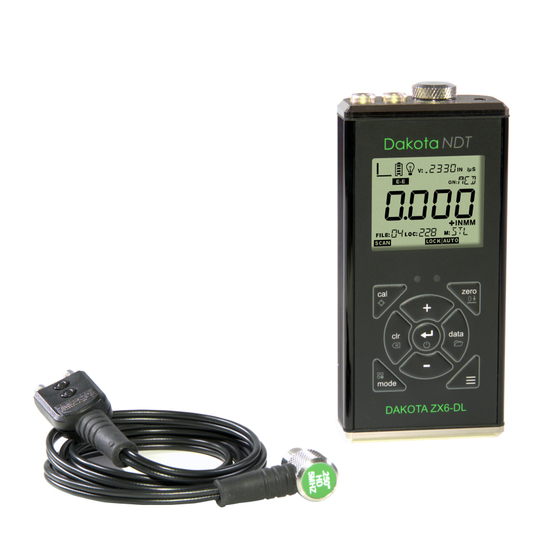

The ZX6-DL is an ultrasonic thickness gauge equipped with an echo-echo mode (through-paint) that measures the thickness of the base material (substrate) without removing the paint. It has expanded the measurement range from the conventional model MMX-6, achieving a top-class measurement range of 2.5 to 50 mm in echo-echo mode and 0.63 to 1,000 mm in pulse-echo mode. It includes all the features of the ZX5-DL, such as scan mode (high-speed measurement), alarms, sensitivity adjustment, USB power supply, and a data logger (storing 10,000 measurement values), demonstrating high performance in various environments and applications as a high-grade model in the ZX series. ■Features - Echo-echo mode for measuring the thickness of the base material (substrate) without removing the paint - Measurement range of pulse-echo 0.63 to 1,000 mm and echo-echo 2.5 to 50 mm - Five levels of sensitivity adjustment - Screen refresh rate of 10 times per second, and ultra-fast measurement of 100 times per second in scan mode - Compatible with mobile batteries, USB chargers, and USB power from PCs - IP65 dustproof and drip-proof performance with a 5-year warranty *For more details, please refer to the PDF document or contact us.
Inquire About This Product
basic information
■Specifications - Measurement range (steel equivalent): Pulse-Echo: 0.63 to 1,000 mm Echo-Echo: 2.54 to 50 mm - Display resolution: 0.01 mm (0.1 mm when measuring over 200 mm) - Repeatability accuracy: ±0.01 mm - Sound speed measurement range: 305 to 18,542 m/s - Measurement modes: Pulse-Echo (thickness, corrosion and thinning measurement) Echo-Echo (measurement of base material thickness from the coating) - Probe: Dual transducer probe - Screen update: 10 times/second - Dimensions: 64 (W) × 131 (H) × 32 (D) mm - Weight: Approximately 312 g (including battery) - IP rating: IP65 (dustproof and splashproof) - Power supply: Two AA alkaline batteries, 45 hours of operation - Warranty period: 5 years (warranty applies only to the main unit) - Functions: Material list, sensitivity adjustment, scan mode Single-point and two-point calibration, V-path correction, automatic zero adjustment, alarm Thickness differential measurement, sound speed measurement, data logger (10,000 entries) *For more details, please refer to the PDF document or contact us.*
Price range
P3
Delivery Time
P3
Applications/Examples of results
■ Thickness measurement of metals such as iron, stainless steel, aluminum, castings, as well as glass, plastics, and ceramics ■ Thickness measurement of the substrate (base material) from the coating surface ■ Sound velocity measurement of cast iron, ceramics, and others
Line up（2）
| Model number | overview |
|---|---|
| ZX6-DL | Base model |
| ZX6-DL-RS232C | Model equipped with RS-232C output function |
