A mid-range thickness gauge equipped with a variety of functions that supports all measurement objects with a 5-level sensitivity adjustment feature.

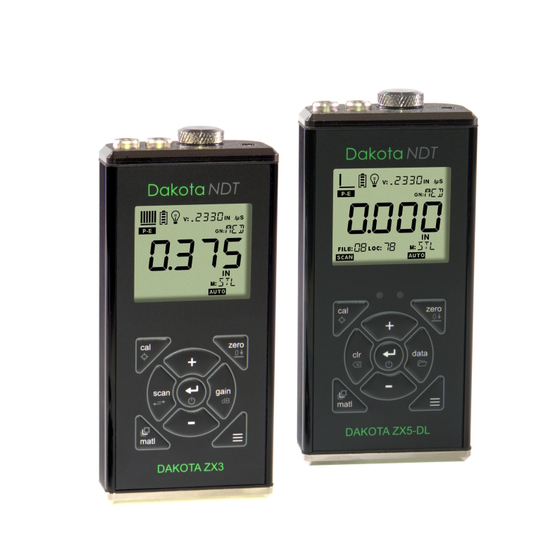

The ZX3 / ZX5-DL is a highly versatile mid-range ultrasonic thickness gauge that meets a wide range of thickness measurement needs. With a measurement range of 0.63 to 1,000 mm, it features automatic zero adjustment, single and dual point calibration, five levels of sensitivity adjustment, and excellent basic performance, along with a variety of functions. In scan mode, it performs high-speed scanning at 100 times per second (normally 10 times per second) and displays the minimum thickness when the transducer is lifted. In addition to these features, the ZX5-DL includes an alarm, differential thickness measurement, sound velocity measurement mode, USB power supply, and a data logger (capable of storing 10,000 measurement values). It also supports remote control, allowing settings to be changed and measurement values to be retrieved via commands from external devices. ■ Features - Overwhelming measurement range of 0.63 mm to 800 mm (equivalent to steel) - Five levels of sensitivity adjustment - Screen updates at 10 times per second, and ultra-fast measurements at 100 times per second in scan mode - Optimally sized for Japanese users, lightweight design for comfortable long-term inspections - IP65 dust and drip-proof performance with a 5-year warranty *For more details, please refer to the PDF document or contact us.
Inquire About This Product
basic information
■Specifications - Measurement range: 0.63 to 800mm (steel equivalent) - Display resolution: 0.01mm (0.1mm when measuring over 200mm) - Repeatability: ±0.01mm - Sound speed measurement range: 305 to 18,542 m/s - Measurement mode: Pulse-echo (thickness, corrosion, and wall thickness measurement) - Probe: Dual transducer probe - Screen update: 10 times/second - Dimensions: 64 (W) × 131 (H) × 32 (D) mm - Weight: Approximately 312g (including battery) - IP rating: IP65 (dustproof and splashproof) - Power supply: Two AA alkaline batteries, 45 hours of operation - Warranty period: 5 years (warranty applies to the main unit only) - Common functions: Coupling check, auto power off, battery level display Material list, sensitivity adjustment, scan mode Single-point and dual-point calibration, V-path correction, automatic zero adjustment - Functions (ZX-5DL): Differential thickness measurement, alarm, sound speed measurement, USB power supply, data logger (10,000 entries) *For more details, please refer to the PDF document or contact us.
Price range
P3
Delivery Time
P3
Applications/Examples of results
■Thickness measurement of metals such as iron, stainless steel, aluminum, castings, as well as glass, plastics, and ceramics ■Sound velocity measurement of cast iron, ceramics, etc. (ZX-5 series)
Line up（3）
| Model number | overview |
|---|---|
| ZX-3 | Base model |
| ZX5-DL | Difference thickness measurement mode, alarm mode, sound speed measurement mode, USB power supply, data logger (10,000 entries) |
| ZX5-DL-RS232C | Model equipped with RS-232C output function for ZX5-DL. |
