Completely non-destructive corrosion detection of rebar in floor slabs is possible! [NETIS Registration Number: OK-170001-A]

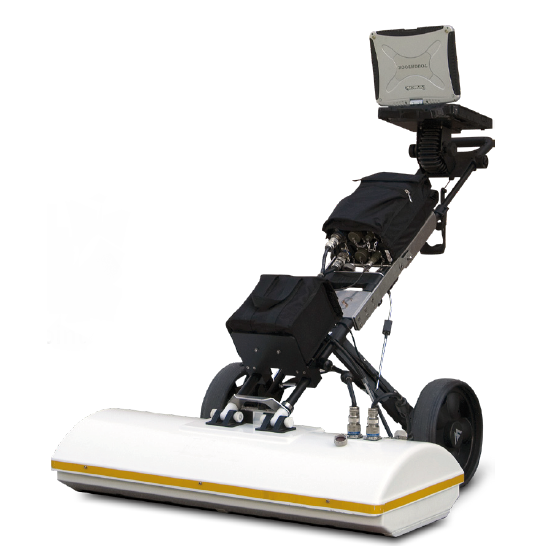

Highbright is a ground-penetrating radar solution specialized in the early detection of deterioration in concrete bridge decks. It features a 16-channel array antenna (approximately 1 meter wide), allowing for a large area to be measured at once. The software designed specifically for bridges (GRED HD BRIDGE) enables detailed 3D tomography exploration and provides three types of processing results: - Rebar corrosion map - Humidity map - Cover thickness map **Features** - Utilizes a 2GHz, 16-channel array antenna for detailed 3D tomography exploration. - The array antenna measures a wide area of 1 meter, significantly reducing inspection time to 1/16 compared to a single antenna radar. **Processing Result Display by Bridge-Specific Software - GRED HD -** GRED HD Bridge is designed to provide a rapid and effective bridge deck evaluation tool. The software automatically detects rebar position, depth, asphalt thickness, and concrete slab thickness.
Inquire About This Product
basic information
- With a unique system, it is possible to evaluate the condition of bridge deck sections without using other devices. - Using software specifically designed for bridges, processing exploration data is easy. - The time required for traffic regulation can be reduced to a maximum of 1/10 of what it used to be. - It helps in formulating repair plans and estimating bridge repair costs.
Price range
Delivery Time
Applications/Examples of results
- Measurement of asphalt pavement and concrete slab thickness - Automatic detection of rebar and detection of reinforcement conditions - Detection of areas affected by rebar corrosion - Detection of damage locations in deck slabs and concrete - Detection of delamination in asphalt and concrete
Detailed information
-
Three types of 3D evaluation maps
