Easy to implement and operate. It features instant disconnection detection with complete OK/NG judgment. The operation method is simple.

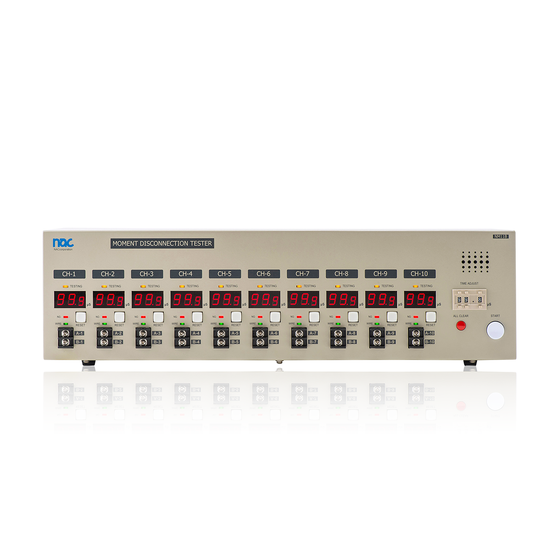

Instant Disconnection Tester for Mass Production Lines The NM11B is a dedicated instant disconnection tester specifically designed for testing electrical characteristics of harnesses, cables, connectors, etc., focusing on instant disconnection tests. It particularly demonstrates its capabilities in mass production lines aimed at ON/NG judgment. It has received high praise both domestically and internationally for testing connectors and wire harnesses exposed to vibration environments in automobiles, aircraft, railways, construction machinery, and ships. - All-in-one design reduces equipment costs - Easy operation - Excellent visibility and intuitive display - Worldwide compatibility - Reliable and trusted technology - Outstanding performance
Inquire About This Product
basic information
The electrical specifications are conducted in accordance with the contact disturbance standards of "JIS C 5402-2-5" and "IEC 66512-2-5," but depending on the settings, ranges that do not comply with "JIS C 5402-2-5" and "IEC 66512-2-5" may also be included. Momentary disconnection test voltage: DC3.3V Momentary disconnection test current: 100mA max Momentary disconnection test judgment value: approximately 33Ω Momentary disconnection detection width: 0.1 to 99.9μsec. Momentary disconnection test duration: until NG or stop Momentary disconnection test method: concurrent method
Price range
P4
Delivery Time
P3
Applications/Examples of results
- Instant disconnection test for automotive connectors - Instant disconnection test for defense-related connectors - Instant disconnection test for space-related equipment connectors - Instant disconnection test for aircraft connectors - Instant disconnection test for medical device connectors - Instant disconnection test for industrial connectors - Instant disconnection test for various computer connectors - Instant disconnection test for various computer connectors - Instant disconnection test for railway vehicle connectors
Company information
Nack Corporation is a specialized manufacturer of electrical testing equipment for wire harnesses, connectors, and cables. We handle everything in-house, from planning to development, design, manufacturing, sales, and after-sales support for harness testers. We engage carefully with each client, proposing the optimal harness testing equipment tailored to their environment, industry, and the cables and harnesses they produce. By providing comprehensive support from planning to implementation and subsequent maintenance, our know-how and technical capabilities evolve daily, allowing us to offer even better products and services. Our in-house product, the "nacman series" harness tester, includes a wide range of options, from harness checkers capable of continuity testing and momentary disconnection testing to harness multi-testers that can perform continuity testing, resistance testing, withstand voltage testing, insulation resistance testing, and momentary disconnection testing all in one device. We also offer a series of momentary disconnection testers widely adopted by connector manufacturers. To meet customer demands, we can customize standard testers or manufacture special testing equipment. The nacman series has received high praise in Japan and around the world.
