Capture instantaneous disconnections in real time without missing them.

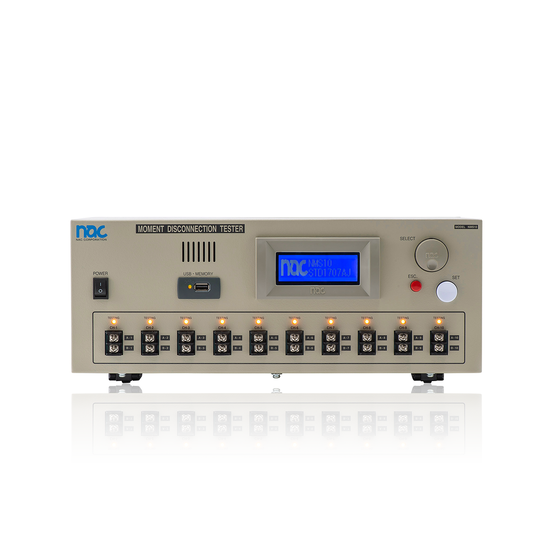

Monitoring instantaneous disconnections in real-time and over extended periods, while logging the phenomena. It also supports mass production lines aimed at OK/NG judgment. Logging-type instantaneous disconnection tester compatible from product evaluation to mass production lines. The NMS10 is a dedicated tester specifically designed for testing, evaluating, and analyzing instantaneous disconnections required for electrical characteristic tests of harnesses, cables, connectors, etc. It particularly excels in the evaluation of instantaneous disconnections in connectors over long durations. Additionally, it is compatible with mass production lines aimed at ON/NG judgment, equipped with a wide range of performance and functions for instantaneous disconnection testing. It has received high praise both domestically and internationally for testing connectors and wire harnesses exposed to vibration environments in automobiles, aircraft, railways, construction machinery, and ships. - All-in-one design reduces equipment costs - Easy operation - Fully capable of handling continuous large volumes of phenomena - Worldwide compatibility - Standard USB drive included - Versatile printer port - PC communication - PC software 'MD Analyzer' included as standard - Compact body with FPGA adoption - Reliable and trusted technology - Excellent performance - Delivers the best performance with PC software
Inquire About This Product
basic information
The automotive standard JASO D616 5.13 allows for instantaneous disconnection testing. The electrical specifications are conducted in accordance with "JIS C 5402-2-5" and "IEC 66512-2-5" contact disturbance standards, but depending on the settings, ranges that do not comply with "JIS C 5402-2-5" and "IEC 66512-2-5" may also be included. Instantaneous disconnection test voltage: DC12V Instantaneous disconnection test current: 10mA to 1A Instantaneous disconnection test judgment value: 1Ω to 5KΩ Instantaneous disconnection detection width: 0.1 to 99.9μsec. Instantaneous disconnection test duration: 1 second to 999 hours (until NG or stop) Instantaneous disconnection testing method: Concurrent method
Price range
P4
Delivery Time
P3
Applications/Examples of results
- Instantaneous disconnection test for automotive connectors - Instantaneous disconnection test for defense-related connectors - Instantaneous disconnection test for space-related equipment connectors - Instantaneous disconnection test for aircraft connectors - Instantaneous disconnection test for medical device connectors - Instantaneous disconnection test for industrial connectors - Instantaneous disconnection test for various computer connectors - Instantaneous disconnection test for various computer connectors - Instantaneous disconnection test for railway vehicle connectors
Company information
Nack Corporation is a specialized manufacturer of electrical testing equipment for wire harnesses, connectors, and cables. We handle everything in-house, from planning to development, design, manufacturing, sales, and after-sales support for harness testers. We engage carefully with each client, proposing the optimal harness testing equipment tailored to their environment, industry, and the cables and harnesses they produce. By providing comprehensive support from planning to implementation and subsequent maintenance, our know-how and technical capabilities evolve daily, allowing us to offer even better products and services. Our in-house product, the "nacman series" harness tester, includes a wide range of options, from harness checkers capable of continuity testing and momentary disconnection testing to harness multi-testers that can perform continuity testing, resistance testing, withstand voltage testing, insulation resistance testing, and momentary disconnection testing all in one device. We also offer a series of momentary disconnection testers widely adopted by connector manufacturers. To meet customer demands, we can customize standard testers or manufacture special testing equipment. The nacman series has received high praise in Japan and around the world.
