The analyzer project by the joint venture Petroineos between "Petrochina" and "Ineos".
【Multi Box】 - Made of hot-pressed glassfibre reinforced polyester (GRP) - Protection class IP65 / EPDM seal - 4 mounting elements, stainless steel, (for fastening the mounting rails or mounting plates etc.) - Colour similar to RAL 7032 light grey / UV-resistant - Stockable design for space saving storage and transport - Low flammability and self-extinguishing Multi Box: https://cds.intertec.info/cds/online/#doc/24c579f5-04ff-46c8-9bca-792598124793/24c579f5-04ff-46c8-9bca-792598124793 For inquiries in Japanese, please contact: japan@intertec.info
Inquire About This Product
basic information
【Features of GRP Material】 ■ Strength (1.7 times that of stainless steel) ■ Lightweight (75% lighter than iron) ■ UV resistant ■ Corrosion resistant, suitable for installation in coastal and humid environments. ■ Excellent durability (20-30 years) ■ Significantly higher heat resistance than iron, providing the ability to protect control equipment from heat generated during disasters. ■ Rated IP65 or higher, preventing moisture and dust from entering the enclosure, ensuring long-term equipment reliability. ■ Wireless communication compatibility ■ Custom sizes available 【Other Products】 - Protective enclosures - Sunshades and canopies - Protective cabinets and shelters - Heaters, thermostats, and temperature controllers (explosion-proof) - Non-explosion-proof heaters - SAFE LINK service: Pre-assembled "hook-up" for site-based plant instrumentation - HOT BOX: Design and construction services for high-temperature heating in hazardous areas - Passive cooling enclosures and shelters: Design and construction services for remote areas
Price information
The price may vary depending on the purpose, installation location, and temperature conditions, so please contact us. For inquiries, please reach out here: japan@intertec.info
Delivery Time
※Delivery times vary by product, so please contact us.
Applications/Examples of results

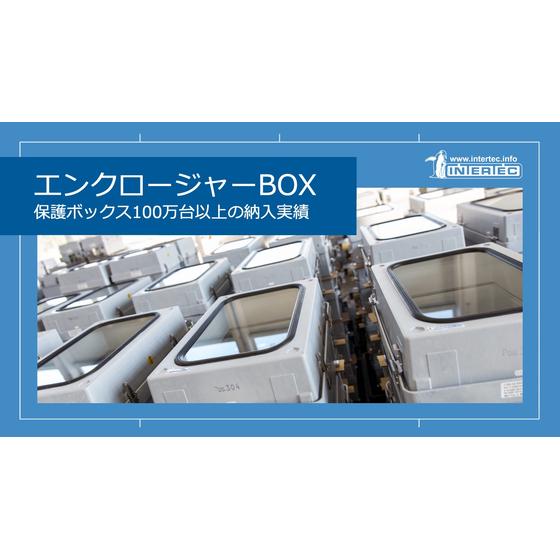

[Transaction Results] We have delivered over 1 million industry-leading instrument protection boxes. We have numerous delivery records of freeze prevention products for extremely cold regions, and we supply our products to the majority of major companies in the oil, gas, chemical, and petrochemical industries. For project results and products, please contact us.
Detailed information
-
INTERTEC-Hess enclosure boxes are manufactured using GRP (Glass Fiber Reinforced Polyester) material with neoprene (EPDM) gaskets, achieving a standard protection rating of IP65. They provide reliable protection for instrumentation equipment against water and dust ingress in harsh outdoor environments. The standard color is RAL 7032 (light grey), with RAL 7001 grey available as the "GO" option. Available options include Arctic GRP with integrated PU foam insulation for cold climate applications, IP68 / NEMA Type 4X / Ex p explosion-proof configurations, and UV protection design with low surface resistance in compliance with IEC60079. Mounting hardware is hot-dip galvanized steel as standard, with SUS316 (1.4404) stainless steel available as an upgrade. Acrylic glass windows are fitted as standard, with safety glass available as an option. A comprehensive range of option configurations is available to meet any installation requirement — from corrosive environments and extreme cold climates to hazardous (Ex) areas.
-
Case Study 1
-
Case Study 2
-
Case Study 3
-
Case Study 4
-
Case Study 5
-
Case Study 6
-
Case Study 7
Line up（9）
| Model number | overview |
|---|---|
| MULTIBOX 25 | Dimensions Height Width Depth in mm (approx.) 485 x 385 x 240 |
| MULTIBOX 48 | Dimensions Height Width Depth in mm (approx.) 485 x 385 x 380 |
| MULTIBOX 60 | Dimensions Height Width Depth in mm (approx.) 640 x 440 x 250 |
| MULTIBOX 70 | Dimensions Height Width Depth in mm (approx.) 640 x 440 x 340 |
| MULTIBOX 80 | Dimensions Height Width Depth in mm (approx.) 750 x 520 x 250 |
| MULTIBOX 100 | Dimensions Height Width Depth in mm (approx.) 640 x 440 x 430 |
| MULTIBOX 150 | Dimensions Heigth Width Depth in mm (approx.) 750 x 520 x 430 |
| MULTIBOX 170 | Dimensions Height Width Depth in mm (appprox.) 750 x 520 x 480 |
| MULTIBOX 250 | Dimensions Height Width Depth in mm (approx.) 800 x 600 x 480 |
catalog（3）
Download All Catalogs
Company information
Protecting internal equipment from environments such as cold, heat, corrosion, and chemical areas. Founded in Germany in 1965, our company has a history of 50 years and has achieved an annual growth of 15%. The reason for this growth lies in our unique GRP material. As experts in GRP material, we manufacture enclosures, cabinets, and shelters, while simultaneously providing heating and cooling systems installed inside. We are a German manufacturer that offers diverse solutions to protect delicate field equipment in chemical plants, petrochemical plants, and other industries worldwide. We protect internal measurement, control, and analysis equipment from environments such as freezing, excessive heat, corrosion, and condensation. All of our products are made from GRP (glass-reinforced polyester) material, which has a very low thermal conductivity, allowing us to maximize the efficiency of cooling and heating systems. 【ISO Certification】 ISO 9001 ISO 14001
