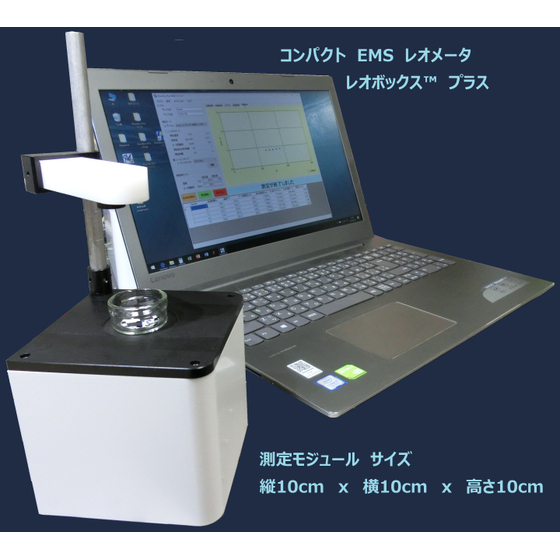

Compact EMS Rheometer "Reobox Plus"
The contact part with the sample consists only of the container and the rotor. Measurements are taken without contact with the main body of the equipment. While offering high precision, it is available at an affordable price range, providing many advantages.
1. The EMS method allows for non-contact measurement between the device and the sample (measurement cell). Therefore, the measurement is very simple, requiring only the placement of the cell on the device. The measurement cell is sealable and disposable, making it safe for measuring volatile samples and medical waste. 2. There is no need for cleaning after each measurement. Therefore, at the end of the day, the measurement cells can be cleaned all at once, significantly improving measurement efficiency (the time required for cleaning and drying the measurement fixtures is about 5 minutes per session). 3. It is one of the smallest in the world (the measurement area is 10cm x 10cm x 10cm), allowing for direct installation in simple temperature-controlled cabinets or constant temperature baths. This enables easy and stable viscosity analysis. 4. The amount of sample required for measurement is only 0.5cc. 5. There is a wide variety of rotors available, allowing for high-precision measurements across low to high viscosity ranges. 6. The only moving part is the motor, which means it does not break down. There is no longer a need for repairs on expensive fixtures like spindles. 7. Since the measurement cell is non-contact with the device, it offers high scalability. We can accommodate individual requests if you let us know your needs.
Inquire About This Product
basic information
【Software】 ■ Viscosity Measurement ■ Viscosity Analysis ■ Viscosity Analysis + Viscoelasticity 【Options】 ■ Simple Temperature Control Chamber ➔ 'Stable temperature environment at low cost' ■ Temperature Control Unit ➔ 'For higher precision measurements', 'Temperature dependence' 【Rotors】 ■ Axial self-supporting rotor for low viscosity range (1–50 mPa·s) ■ Lotus-type self-supporting rotor for low to medium viscosity range (10–1,000 mPa·s) (standard included rotor) ■ Axial retaining rotor for high viscosity range (500–50,000 mPa·s) ■ Custom-made products: We can also manufacture rotors tailored to your needs (e.g., chemical-resistant rotors). A one-month rental program is also available for academic institutions such as universities and high schools. Please contact us for more details.
Price information
Compact EMS Rheometer "Reobox Plus" * Viscosity measurement software * Viscosity analysis software * Viscosity analysis + viscoelasticity software
Delivery Time
Applications/Examples of results
● Blood viscosity analysis (shear rate dependence) <sealed, disposable> ● Volatile samples <sealed> ● Low viscosity samples <high precision> ● Cosmetics <simple, efficiency due to no cleaning required for each measurement> ● Beverages and food <simple, efficiency due to no cleaning required> ● Chemicals, inks, functional liquids <high precision, simple, efficient> ● Adhesives, curing resins <disposable> ● General: Easy and stable measurement <compact, installable in a simple warming cabinet> ● Viscoelasticity: Chemicals, food, cosmetics <softness detection, viscoelasticity> We respond individually to requests such as continuous monitoring.
