A functional integrated fixed and movable bearing combining a DSF pad and steel components.

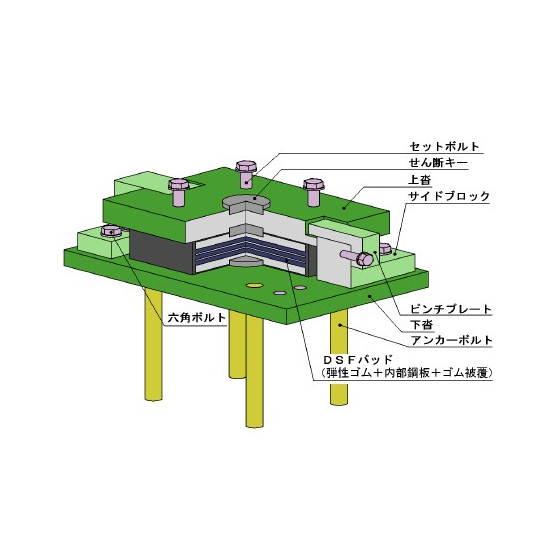

The "rubber bearing with metal fittings" is a functional integrated rubber bearing that combines a DSF pad (a laminated structure of elastic rubber and internal steel plates) with steel components. It possesses the basic functions required at bridge bearing locations (load transmission function and displacement-following function) as well as the ability to resist inertial forces during an earthquake. Additionally, the DSF pad is a product with excellent fatigue durability, having passed a 2 million cycle compression fatigue test. 【Features (DSF Pad)】 ■ Can absorb the deflection of the girder with rubber ■ Internal steel plates are covered with rubber, preventing corrosion ■ Excellent fatigue durability ■ Absorbs vibrations during vehicle passage *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Other Features (Steel Components)】 ■ Can be designed to match the structure of the bridge ■ Shapes can be designed to accommodate inertial forces from earthquakes ■ Rust prevention methods such as plating and painting can be adopted according to the bridge specifications *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
