High-efficiency model enabling multilayer film formation and continuous processing with an 8-slot configuration.

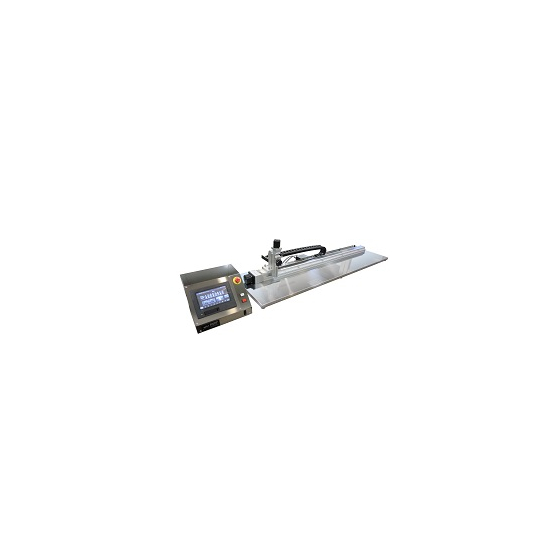

This device is a coating apparatus designed to set a workpiece on a jig with angle adjustment and perform immersion treatment in a liquid tank arranged in eight rows horizontally, in any desired order. It accommodates sizes of Z-axis 95mm, X-axis 1195mm, and W40×D40×H50mm. The eight-tank structure allows for continuous processing of multiple steps, making it ideal for multilayer film formation and efficiency. It is suitable for both research purposes and prototype production.
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: Z-axis 95mm, X-axis 1195mm 2. Target Size: W40×D40×H50mm 3. Target Materials: Acrylic, Glass, Metal 4. Dipping Speed: Z-axis 0.001–40mm/sec, X-axis 0.1–60mm/sec 5. Coating Liquid Circulation: None 6. Coating Liquid Temperature Control: None 7. Filter Mesh: None 8. Drying Section: None 9. Drying Temperature: None 10. HEPA Unit: None 11. Device Size (Approx.): W1600×D450×H355mm
Price range
P5
Delivery Time
Applications/Examples of results
Medical devices, laminated substrates, glass, etc. This device is a coating apparatus that sets the workpiece on a jig with angle adjustment and performs immersion treatment in a liquid tank arranged with eight in the horizontal direction in any desired order. It is used for forming optical multilayer films and functional polymer films. There are efficient prototyping results in research institutions and companies.
Line up（17）
| Model number | overview |
|---|---|
| NIC-1106 | A desktop model that achieves high-precision and stable release agent application for small-sized substrates. |
| NIC-1103 | Supports 6 to 8 inch substrates, a versatile medium-sized nano coater. |
| NIC-0809 | Optimal for φ200mm substrates, a nano coater that supports a wide range of research and development. |
| NIC-1109G | Box-integrated design that achieves high-precision coating in an inert gas environment. |
| NIC-1208 | High-power model compatible with 600mm square substrates, achieving uniform coating of large samples. |
| NIC-1410-S1 | High-precision dip coater for small cubic samples, compatible with thicknesses up to 1.5mm. |
| NIC-1308 | Dedicated nano coater compatible with roll materials, capable of continuous coating. |
| DT-1104 | A specialized device for achieving uniform coating on disk media. |
| MD-1501-S1 | Dip coating device with a circulation mechanism that enhances liquid stability and has high chemical resistance. |
| SA-1109 | High-precision cleaning of substrates and samples is possible with ultrasonic cleaning. |
| SA-1202 | An efficient cleaning and drying integrated device that combines warm water drying. |
| NIC-1510 | A high-performance model that balances tank replacement and cleaning, accommodating multiple uses. |
| LD-1811 | Linear type that achieves oxidation prevention and stable film formation through nitrogen purge. |
| NIC-2003 | Supports a maximum stroke of 1.3m, an ideal model for handling large circuit boards. |
| DT-1812 | Ideal for continuous process handling, flexible support for various prototypes with an 8-tank system. |
| DT-2002 | Specialized dip coater for cylindrical materials, compatible with diameters of 20 to 60 mm. |
| NIC-2409 | Nano coater for large cylindrical materials compatible with Φ200 to 700mm sleeves. |
