This is an evaluation device that allows organic EL display devices to emit light under constant temperature and humidity conditions, conducting accelerated tests on brightness and emitted screen images, with the capability of CSV output.

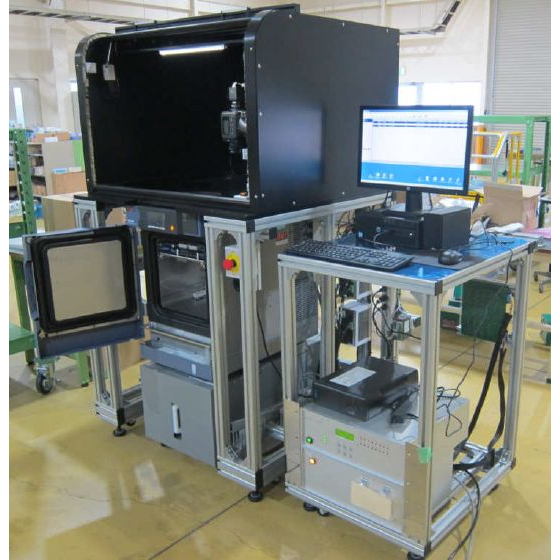

The ELS-100A is a device that efficiently conducts environmental testing and evaluation of organic EL devices. It installs the OLED device's light-emitting unit inside a constant temperature and humidity chamber and performs automatic measurements through a high-transmittance glass on the top surface of the environmental control unit. The standard specification features 4 channels and accommodates both bottom-emission and top-emission fixtures for the OLED device. With a proven constant current control system and a reliable luminance meter, it conducts accelerated tests for temperature and humidity, records the light-emitting state, and outputs the data in CSV file format.
Inquire About This Product
basic information
【Device Overview】 Number of Channels: 4 channels, dual-purpose fixture for top emission/bottom emission Driving Conditions: Constant current control Luminance Measurement: Konica Minolta luminance meter Temperature and Humidity Setting Range: Temperature +15℃ to +85℃ (settable in 0.1℃ increments) Humidity 30 to 95% RH (settable in 1% increments) Power Supply: 100V / 15A, 2 systems Weight: Approximately 260 kg, with caster adjusters
Price range
Delivery Time
Applications/Examples of results
1. The challenge of organic EL lighting and displays is the lifespan characteristics of devices in temperature and humidity environments. 2. This device will be used as an accelerated testing apparatus to quickly assess the lifespan of organic EL devices. 3. It is an optimal OLED evaluation device for accelerated testing of the light-emitting materials that make up organic EL devices, as well as for the surrounding materials and components.
