Screen for solid-liquid separation of fiber and lightweight foreign substances.

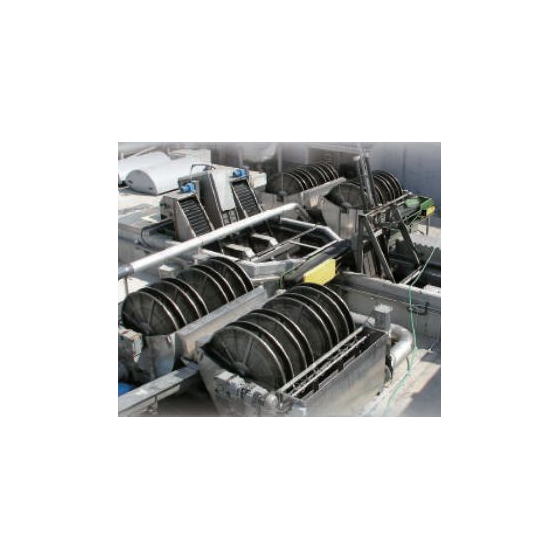

The "Kono Screen" is a screen that can primarily separate fibers and lightweight foreign substances from liquids. The separation accuracy is 100μ or more. Raw water flows between a pair of rotating disks, utilizing the rotation of the disks and the water flow to discharge foreign substances. Its unique disk shape and rotation enable self-cleaning of the screen surface and the removal of foreign substances finer than the mesh size. 【Features】 ■ Capable of solid-liquid separation of easily entangled foreign substances such as fibers ■ Filtration accuracy of 100μ or more ■ Unique disk shape makes it less prone to clogging *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Inquire About This Product
basic information
【Specifications】 ■Model: CS701 ・Maximum Processing Capacity (m3/h): 29 ・Gearbox Capacity (kW): 0.37 ・Body Weight (kg): 275 ・Operating Weight (kg): 500 ■Model: CS1001 ・Maximum Processing Capacity (m3/h): 58 ・Gearbox Capacity (kW): 0.75 ・Body Weight (kg): 395 ・Operating Weight (kg): 895 *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
[Applications] - White water recovery - Collection of fibrous foreign materials such as wood chips, thread scraps, and hair - Wastewater treatment *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
catalog（1）
Download All Catalogs
Company information
We aim to be a company that goes beyond the mere framework of a trading company by handling unique and distinctive products from both domestic and international sources and providing services such as maintenance, thereby offering added value in both hardware and software aspects. True to our company name, we will contribute to the environment in the field related to "water" with products and services from Japan, Italy, the United States, and Australia, with "separation" as our theme.
