Insulation enhanced with a 99% installation rate of insulation material! A plywood system that can be installed after the floor framing.

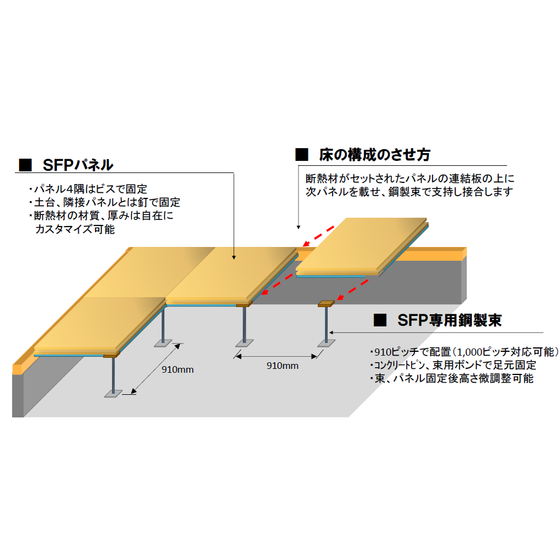

The "SFP Plywood Reinforced Floor Panel System" by Tsuka Kanamono has extremely few areas that become bridges due to the absence of beams, and the floor structure is completely covered with insulation material except for the support parts. Since there is no on-site processing, issues such as gaps in the insulation material and the generation of leftover or surplus materials are resolved, allowing for smooth installation and processing. The SFP floor framing is flatter on the underside compared to conventional systems, improving ventilation and reducing the likelihood of condensation. Additionally, the increased height under the floor makes maintenance easier. 【Features】 ■ Insulation material coverage rate of 99% ■ Obtained Better Living certification ■ Post-construction work on the floor framing is possible ■ Floor level can be adjusted freely *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Inquire About This Product
Related Videos
basic information
【Environment】 - No waste materials such as plywood are generated from factory production → Reduction of industrial waste - Easy to clean under the floor, keeping it tidy - Elimination of floor creaking factors, resolving floor noise 【Safety Work】 - Weight of 15Kg per sheet, size 910mm x 910mm reduces fatigue - Eliminates the risk of tripping over beams in traditional floor framing and accidentally stepping through insulation - Minimal on-site processing, reducing the risk of work-related accidents from electric saws, etc. *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
【Uses】 ■ Nursing homes and day service centers ■ First floor of a three-story wooden building ■ OA floor of a wooden office ■ Stores, etc. * For more details, please refer to the catalog. Feel free to contact us as well.
Company information
Our company has developed a "steel support" that replaces the traditional "tsuka-ki" used to support the first-floor framing of single-family homes, equipped with adjustment functions and excellent durability, and we have aimed for its widespread adoption under the name "Replacing Tsuka-ki with Kanamono." During the Great Hanshin-Awaji Earthquake, its functionality was proven, and we received high praise from major housing manufacturers. Recently, through competition with other companies in the same industry, coinciding with the spread of precut methods among major and mid-sized builders using traditional construction methods, the transition from the conventional 100% "tsuka-ki" to the stronger and more convenient "steel support" has taken place. The "steel support" has reached an environment where it can be individually performance evaluated, and we have obtained performance certification as the first of its kind. Additionally, as a new challenge, we are progressing from "wooden beams" to "steel beams," and from wooden joists and plywood flooring to "floor panels" that incorporate insulation materials. We are also working on a "floor base system" that allows for quick and easy installation by combining these steel beams and floor panels, as well as a "seismic frame" developed to prevent the collapse of buildings and mitigate impacts during earthquakes, which eliminates the need for braces and hold-down hardware.
