It is a rubbing device that can be used for material evaluation and durability assessment, in addition to rubbing evaluation.

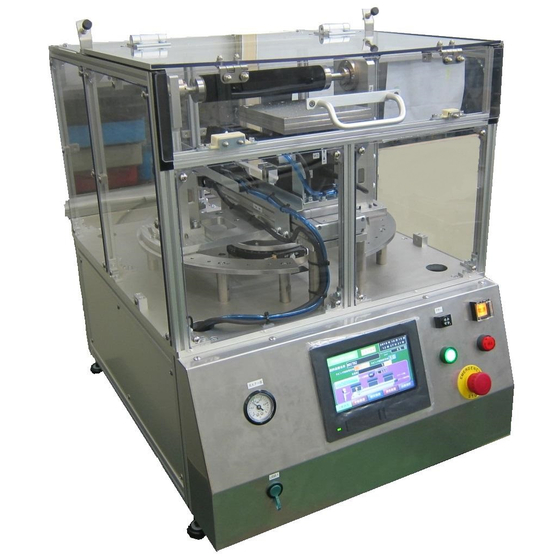

The small rubbing device "Model: MRM-100" is designed to orient liquid crystal molecules by rubbing a film formed on a glass substrate in a liquid crystal panel. It is a compact type that excels in functionality, especially for experimental, research, and prototyping purposes. 【Main Specifications】 ○ Table Size: 100×100mm ○ Table Movement Speed: 600mm/min (variable) ○ Table Rotation Range: ±45° (micro-head operation) Optional ○ Table Up and Down Stroke: 10mm (micro-head operation) For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Specifications】 ○ Table size: 100×100mm ○ Table movement speed: 600mm/min (variable) ○ Table rotation range: ±45° (micro head operation) - optional ○ Table vertical stroke: 10mm (micro head operation) ○ Table lifting mechanism: Sample descends and retracts during return stroke in reciprocating operation ○ Roll width: 240mm ○ Roll diameter: φ48mm ○ Roll rotation speed: 1400rpm MAX. ○ Roll rotation range: ±45° ○ Utility: Power supply 100V 500W, Air pressure 0.5MPa ○ External dimensions: (W)570×(D)700×(H)730mm, approximately 80kg ○ Installation dimensions: When cover is opened and closed (D)1050mm, (H)1050mm * The above items may change depending on the purchase specifications. ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
Company information
Since our establishment in 1972, we have supported engineers and researchers involved in displays. We manufacture and sell various glass substrates and world-standard EHC cells both domestically and internationally, which are the core of our business. In recent years, there has been a growing demand for diverse metal deposition substrates and high-definition patterned glass substrates. As peripheral equipment, we provide custom small LCD panel assembly systems and wet process equipment, as well as dedicated systems for measuring and inspecting organic EL and organic solar cells, including simple jigs and more.
