【For Labs】Achieves orientation processing equivalent to higher-end models at a low price. Compact and lightweight, making it easy to carry.

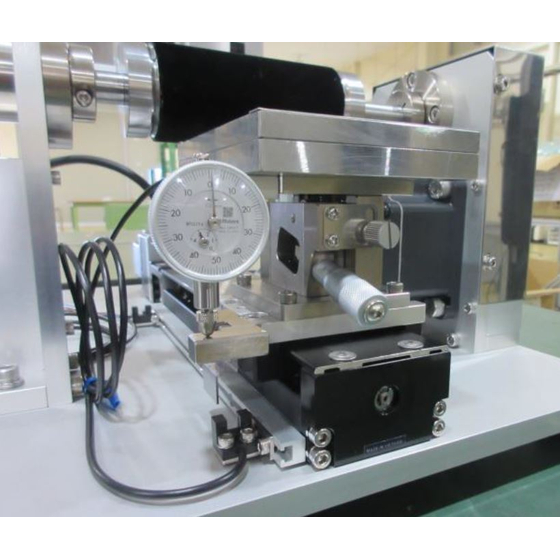

The "Lapping Jig MRG-100" is a device designed for development and prototyping that enables high-precision lapping of glass substrates, film substrates, and more. The rotation of the lapping roll and the movement of the sample stage can be easily operated using a volume knob and toggle switch. With a compact size of 320×440mm, it can be installed in tight spaces and is very easy to transport. 【Features】 ■ The lapping pressure can be set by adjusting the height of the table. ■ Despite its small size and low cost, it enables advanced orientation processing. *For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Inquire About This Product
basic information
【Specifications】 Target sample size: Maximum 100mm square substrate Table movement speed: Maximum 25mm/sec (manual volume adjustable) *Forward and reverse switching is operated by a toggle switch Table movement stroke: Approximately 150mm Table vertical stroke: 10mm (manual operation with micro head) Roll width: 100mm Roll diameter: φ48mm Roll rotation speed: Maximum 3000rpm, rotation direction and speed can be switched individually Power supply: AC100V External dimensions: W320×D440×H276mm (Digital meter for rotation speed and torque is available as an option) *For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
[Purpose] The method known as rubbing involves the process of rubbing a glass substrate or film substrate coated with an alignment film such as polyimide in one direction. When liquid crystal molecules come into contact with the alignment film that has undergone rubbing treatment, they easily align in that direction, enabling the ON/OFF control of light transmission. [Achievements] Research and development of liquid crystal displays, sensors, and functional application films.
