Dispersion Mixing Kneading Machine - 3-axis Tabletop Type Hibiscus Dispersimix

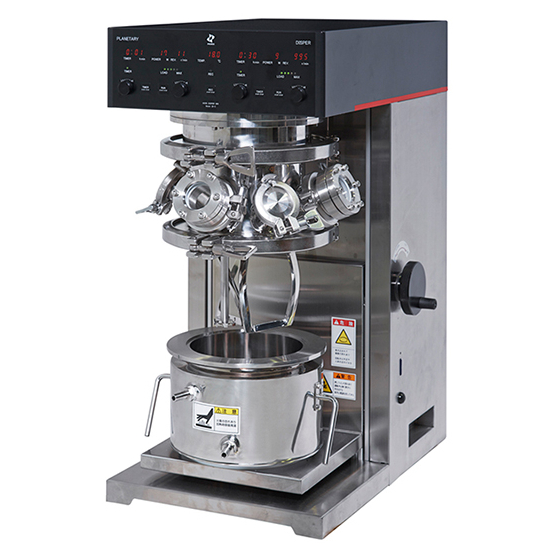

Hibiscus Dispermix 3D-2 Type
[Video available] Supports ultra-high viscosity! This is a laboratory mixer of a composite type stirrer that performs high-speed stirring while mixing. There are many successful scale-ups from research machines to production machines!
The Hibis Dispermix is a dispersing, mixing, and kneading machine that can perform kneading and high-speed stirring simultaneously. It is suitable for uniformly dispersing and mixing large amounts of powder with small amounts of liquid. This single unit can handle materials ranging from low to high viscosity. It has numerous delivery records in various applications, including chemical products such as metal pastes and slurries for lithium-ion battery electrodes, as well as pharmaceuticals, dental materials, and food products. The Type 3D-2 is a benchtop research machine designed for processing 2 liters. When making lithium-ion batteries... many users start their research and development with this Hibis Dispermix.
Inquire About This Product
basic information
**Features of Hibis Dispermix** - It is a three-axis planetary dispersing, mixing, and kneading machine that combines a low-speed twisting blade with a high-speed stirring shaft. - It can disperse, mix, and knead without dead corners inside the container. - It can handle materials from low viscosity to high viscosity with just one Hibis Dispermix unit. - There is no loss of processed material due to container transfer, and cleaning time can be significantly reduced, leading to cost savings. **Features of Model 3D-2** - It can disperse, mix, and knead from 1L to a maximum of 2L. - Compared to conventional machines, the removal of the high-speed shaft has become easier. - The container is equipped with a jacket that allows for heating and cooling. - The stirring section is easy to disassemble, allowing for quick cleaning. - It is equipped with a data logging system using an SD card. - The removal of the high-speed shaft has been made easier. - It is also possible to operate with only the twisting blade by removing the high-speed shaft (optional).
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
■Examples of Use■ ・Chemicals ── Inks, ceramic materials, magnetic materials, epoxy resins ・Electronic materials ── Capacitors, secondary batteries, solder paste, semiconductor encapsulants ・Cosmetics ── Foundation, packs, makeup products ・Pharmaceuticals ── Ointments, poultices, tapes, dental materials ・Food ── Roux, ready-to-eat meals, béchamel sauce
Detailed information
-
Three-axis planetary motion This is a view from the top of the container. With the sun gear at the center, the low-speed axis and high-speed axis rotate while revolving in a planetary motion, allowing for uniform stirring within the container.
-
Mixing School Topics The Primix Emulsification and Dispersion Technology Research Institute (R) provides an easy-to-understand explanation of mixing knowledge. Enjoy the depth of mixing. ▼Also compatible with ultra-high viscosity! Hybis Dispermix http://primix.jp/mixer_lecture/vol4/07.html
Line up（4）
| Model number | overview |
|---|---|
| 3D-2 Type | Processing capacity: 1 to 2L |
| 3D-5 Type | Processing capacity: 3.5L to 5L |
| 3D-20 Type | Processing capacity: up to 20L |
| For Production | Various types are available. Please contact us for details. |
