Dredging System Underwater Sand Discharge Robot ★Adjustment Ponds, Dams, Rivers, Lakes, etc.★
Construction is possible even while the equipment is in operation! Safe dredging can be performed remotely from land.

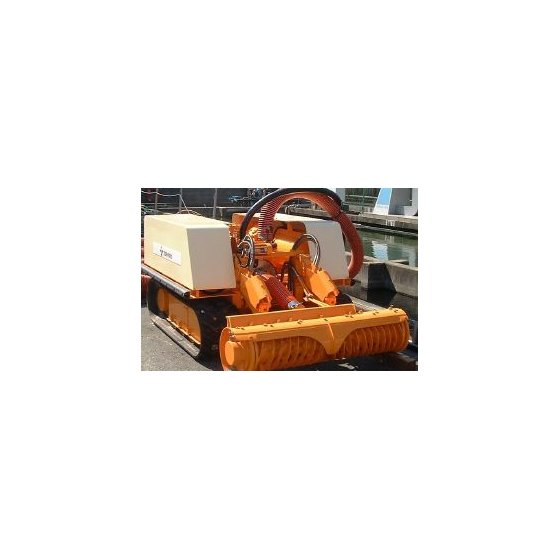

The "Underwater Sediment Removal Robot" is a system designed to dredge sediment underwater in facilities such as adjustment ponds, dams, rivers, lakes, aquariums, and waterways without stopping the equipment. It is capable of transportation on narrow mountain roads (compatible with 4-ton trucks) and adopts a compact and lightweight structure. Safe dredging can be performed remotely from land, allowing for dredging in specified areas as needed. 【 Construction Capacity 】 ■ Construction Capacity: Average dredged removal amount 40m3/day ■ Working Range: Operating radius from the remote control position on land 150m ■ Dredging Depth: 1 to 10 meters ■ Dredging Flow Rate: Below 2m/sec ■ Buoyancy Adjustment: Buoyancy adjustment using a support float barge (for loose sediment) For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Dredging System Equipment】 ○Underwater Sand Removal Robot →Underwater weight 1,200kg, lift height 18m, 80cm³/h: 1 unit ○Support Float →Buoyancy 5t, remote-controlled winch included: 1 unit (to be selected based on site conditions) ○Control Panel →Water depth/inclination/flow diameter, with wireless remote control: 1 set ○Sand Discharge Hose →100A, 1.5kg/m: 10 pieces ○Control Cable →50A, 4kg/m: 250m ○Mechanical Sediment Separation System →Processing capacity 120–240m³/h: 1 set* ○Forced Dewatering and Compression Separation System →Vacuum pump 90kN/m², generator 50KVA: 1 set* ○Sediment Transport Machinery →Backhoe, dump truck, etc.: 1 set *…The sediment separation system can be selected based on site conditions. For more details, please contact us or download the catalog.
Price range
Delivery Time
Applications/Examples of results
【 Purpose 】 ○ Robot Dredging System *For more details, please contact us.*
catalog（1）
Download All Catalogs
Company information
Our company was established on July 1, 2013, through the management integration of three companies: Tokyo Electric Power Environmental Engineering Co., Ltd., Tokyo Electric Power Industries Co., Ltd., and Oze Forestry Co., Ltd., and we adopted the name Tokyo Power Technology Co., Ltd. As the environment surrounding the energy business undergoes significant changes, we aim to strengthen our technological foundation to ensure safety and quality, while also enhancing our on-site technical capabilities and price competitiveness to respond accurately, swiftly, and at low cost to the needs of our customers and society. We strive to become a "trusted" company and a "chosen" company. With renewed determination, all our employees will dedicate themselves to this effort, and we kindly ask for your continued support and patronage.
