We can also accommodate as-sliced, as-lapped, etched wafers, as well as low-resistance and high-resistance wafers! Please feel free to contact us first.

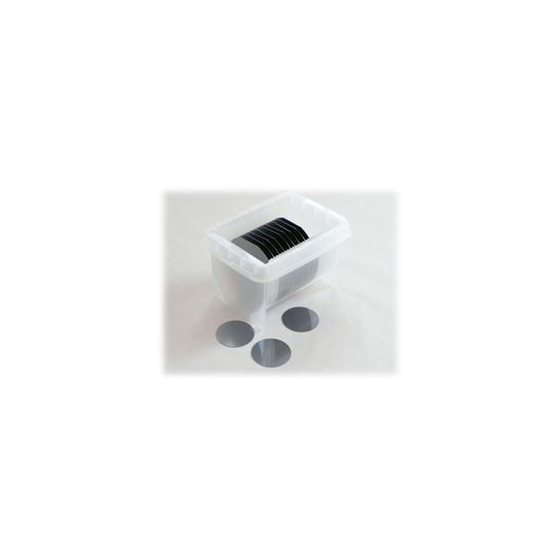

As part of our foundry services, we also sell wafers. We can accommodate wafers according to special specifications. [Examples] - As-sliced, as-lapped, etched wafers - Low-resistance, high-resistance wafers - Fabrication of dopant-specified wafers (B, P, AS, Sb) - Double-sided mirror wafers - Fabrication of notch wafers with a diameter of 6 inches or less - Fabrication of irregular and special-sized wafers (Max Φ450mm) - Fabrication of thin and thick wafers - Dicing, cutting, drilling, grooving, size reduction processing, etc. - Wafer regeneration - Cassette cleaning For more details, please download the catalog or contact us.
Inquire About This Product
basic information
【Lineup Details】 ○ Outer Diameter (inches): 2 to 12 ○ Outer Diameter (mm): 50±0.5 to 300±0.2 ○ Thickness (μm): 350±20 to 775±20 ○ OF (mm): 16±3 to 47.5±3 ○ Surface Orientation (common): 100, 111, 110 ○ Conductive Type (common): P/N ● For more details, please download the catalog or contact us.
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
For more details, please contact us.
