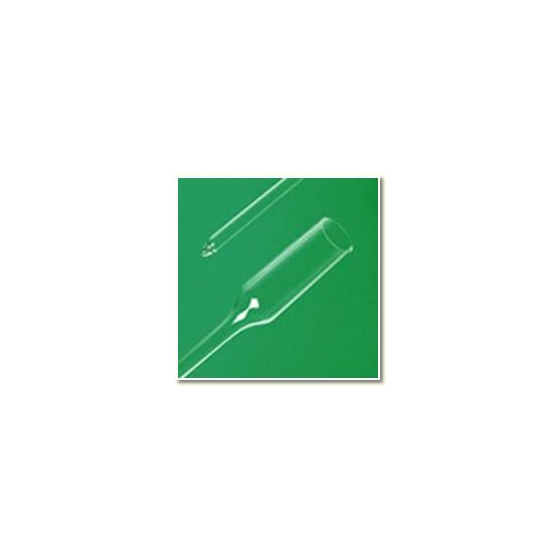

This is a glass capillary tube with a funnel that has a very thin wall thickness.
■This is a capillary with one end sealed and a funnel-shaped opening for easy sample insertion. ■The wall thickness is 0.01 mm, and the length is 80 mm. ■It is used for X-ray crystallography of proteins and powdered compounds.
Inquire About This Product
basic information
■There are four types of glass materials: soda glass, lead glass, borosilicate glass, and quartz glass. ■There are types with an outer diameter ranging from 0.1 to 5.0 mm. (Soda glass types range from an outer diameter of 0.08 to 5.0 mm.) ■Length 80 mm ± 5 mm, wall thickness 0.01 ± 0.01. ■The outer diameter tolerance is ±0.05 to ±0.25 (the tolerance varies depending on the outer diameter).
Price information
The price of soda-lime glass (outer diameter 1.0mm FS-100).
Price range
P2
Delivery Time
※Since it is an imported item, the availability may vary depending on domestic stock.
Applications/Examples of results
Mainly for X-ray crystallography of proteins and powdered compounds. The funnel-shaped opening makes it easy to insert samples, and it is used as a tool for various analyses.
Company information
In 1907, a glass processing business was established as a sole proprietorship in the Kita Ward of Osaka City, and in 1957, it was reorganized into a corporation in line with the development of the business, becoming what is now Fuji Rika Kogyo Co., Ltd. Our main operations include the production of glass products and the sale of scientific instrument manufacturer products. For over 100 years, we have steadily progressed alongside scientific glass and scientific instruments.
