Safe for inversion work with ball bearing sealing! Long bolt types are also available in the lineup!

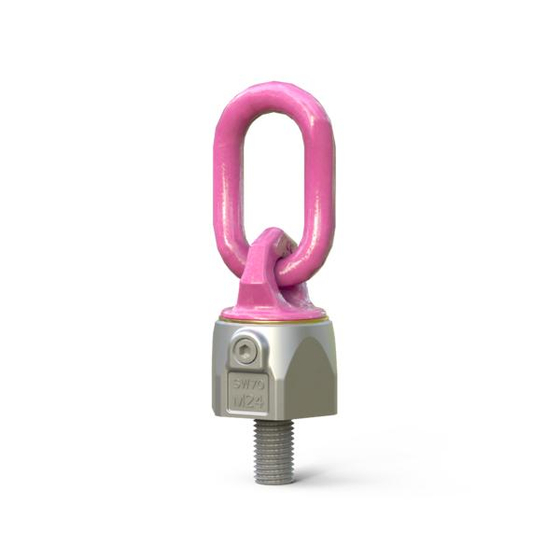

The "Bario Ring VWBG-V/VWBG" is a lifting point with a bolt type that reduces shock loads caused by friction during rotation and inversion through ball bearings. It allows for 360° rotation, with a ring movement range of 230°. It features wear markings for easy identification of disposal standards. In addition to a wide variety of sizes and thread standards, there is also a long bolt type available that can be used with taps and through holes.
Inquire About This Product
basic information
**Features** - Smooth rotation even under load - Ring part can swivel 230°, bolt part can rotate 360°, allowing for load in all directions - A wide range of sizes available from M8 to M100 (0.3 to 40t) - Complies with Machinery Directive 2006/42/EC - Bolts that have passed magnetic particle inspection are used - Surface coating of the ring part with pink powder and zinc plating finish on the bolt part - Two types of bolts available: standard size and long size The length of the long size bolt can be specified (cutting processing) For more details, please refer to the catalog or contact us.
Price information
Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
For more details, please refer to the catalog or contact us.
