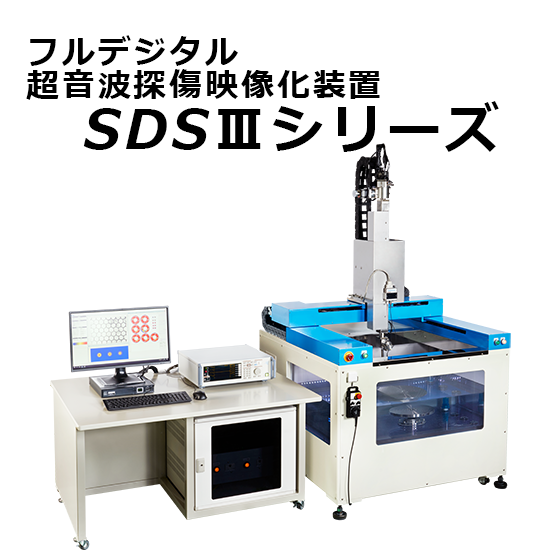

Combining the latest ultrasonic testing technology and image processing technology! Ultrasonic testing imaging device.
The highly praised SDS has become compatible with Windows 10 and is now even easier to use. With the inclusion of the high-speed, wide-band ultrasonic flaw detector HIS3, it can cover materials ranging from thin to thick. All settings of the flaw detector can be remotely operated from a Windows PC, and the software comes standard with extensive image analysis capabilities. The mechanical components can be customized to meet the specific needs of the customer.
Inquire About This Product
basic information
The SDS3 series is equipment designed to meet the needs of various fields such as aviation, steel, non-ferrous metals, nuclear power, automotive, new materials, and semiconductors. It is capable of observing the internal state of materials, detecting voids and inclusions, identifying cracks within semiconductors, and distinguishing between adhesion and delamination. Additionally, the mechanical specifications are available in 3-axis, 5-axis, and 6-axis configurations, and we can manufacture the number of axes, inspection stroke, and tank size according to your application, so please feel free to consult with us. 【Features】 The 6-axis high-precision scanner has a rich variety of scanning patterns, and the scanning conditions are automatically set through two-point teaching at the start and end. - Planar scanning - Side scanning - Cylindrical scanning - Conical scanning - Spherical scanning - Concave scanning
Price information
Please consult us as the price depends on the specifications. For detailed information, please send your inquiry through Ipros or our company website. Website inquiry: https://www.kjtd.co.jp/support/index.html
Price range
P7
Delivery Time
※The delivery date depends on the production status, so please check during your consultation.
Applications/Examples of results
It can be used for various applications such as delamination inspection of IC chips, detection of defects inside metals, and flaw detection of components. Non-destructive testing of delamination by soldering, thickness measurement, sound velocity measurement, and observation of defect shapes.
