SIM-built temperature and humidity meter EZ-101A without power or Wi-Fi required.
EZ-101A
No need for power, Wi-Fi, or installation. Just place it to record temperature and humidity in the cloud and monitor remotely.

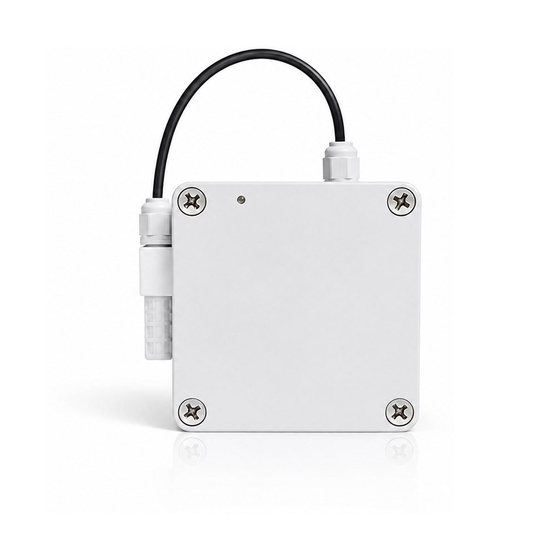

The EZ-101A is an LTE-M communication temperature and humidity meter with a built-in IoT SIM. It requires no power installation, Wi-Fi, or router; simply place it on-site to start measuring. It measures temperature and humidity every five minutes and automatically sends the data to the cloud every hour. You can check multiple remote locations collectively from a smartphone or PC web browser, and there is no need to install a dedicated app. While out of range, it can store up to 30 days of data in the unit and send it all at once after recovery, ensuring no gaps in the records. It operates for over five years (design value of six years) on a built-in lithium battery alone. With an IP65 design, it can be used outdoors under eaves or in refrigeration and freezing equipment, and it has been confirmed to operate at temperatures below -20°C. It supports email notifications with specified duration for threshold exceedances, automatic calculation of heat index (simple WBGT), dew point, and VPD, as well as Excel and PDF output, and integration with existing systems via API/Webhook. This is a monthly service that includes equipment, communication, app, and warranty, so there is no need to purchase the equipment.
Inquire About This Product
basic information
【Specifications】 Model Number: EZ-101A Type: SIM Built-in Temperature and Humidity Meter (Thermometer and Hygrometer) / Wireless Data Logger Display Items: Temperature, Humidity, Dew Point, Absolute Humidity, VPD, Heat Index (WBGT Simple) Measurement Accuracy: Temperature ±0.2℃ (0 to 60℃) / Around -20℃ ±0.4℃ Humidity ±1.8%RH (both values are for the sensor element alone) Measurement Interval: 5 minutes Transmission Interval: 1 hour Communication Method: LTE-M (Cat-M1) / Built-in IoT SIM Operating Temperature Range: -20℃ to +60℃ Power Supply: Built-in Dedicated Lithium Battery (Li-SOCl₂ 3.6V) Battery Life: Over 5 years (design value over 6 years) Protection Rating: IP65 Design External Dimensions: Approximately 12×17×7 cm (including sensor and cable) Weight: Approximately 600g Installation Method: Standalone (standard) / Wall-mounted (optional) Compatible Environment: Smartphone / PC Web Browser (no dedicated app required) Design and Assembly: Japan *Battery life is a design value (transmission interval 1 hour, normal temperature, good radio environment standard conditions). *Can be used within the service area of LTE-M. *Avoid installation in direct sunlight.
Price information
Monthly fee: 5,000 yen per unit (excluding tax) Initial registration fee: 3,000 yen per unit (excluding tax) This is a monthly service that includes equipment, communication, applications, and warranty. There is no need to purchase the equipment, and there are no additional communication costs. Repairs for normal usage-related failures and battery replacements are free of charge. Before signing the contract, we will lend you one unit for two weeks at no cost.
Price range
P1
Delivery Time
※We will send it after completing the device registration and initial setup. The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
【Applications】 - Recording temperature and humidity of warehouses/storage items - Temperature recording for refrigerators, freezers, and cold storage - Environmental management of agricultural facilities such as greenhouses - Recording construction conditions (temperature and humidity) at construction sites - Remote monitoring of factories, server rooms, material storage areas, etc. 【Particularly Suitable Locations】 - Places without power supply (operates solely on batteries, eliminating the need for electrical work) - Areas where Wi-Fi is unavailable or where internal networks cannot be used - Locations that are not constantly occupied by people (there is no need to go collect records) - When there are multiple remote locations (can be monitored collectively on a single screen)
Detailed information
-
It can be mounted on a stand and is also compatible with wall mounting.
Line up（1）
| Model number | overview |
|---|---|
| EZ-101A | SIM-integrated LTE-M temperature and humidity sensor. No power or Wi-Fi required, operates on battery alone for over 5 years. IP65 design suitable for outdoor use and refrigeration/freezing. Monthly service (including device, communication, app, and warranty). |
