Refrigerant piping press-fit joint "Refrigerant Double Press"
Refrigerant piping press-fit joint "Refrigerant Double Press"
The era of refrigerant piping with no fire joints is here!! Let's achieve labor-saving and uniform quality with "Refrigerant Double Press" installation.

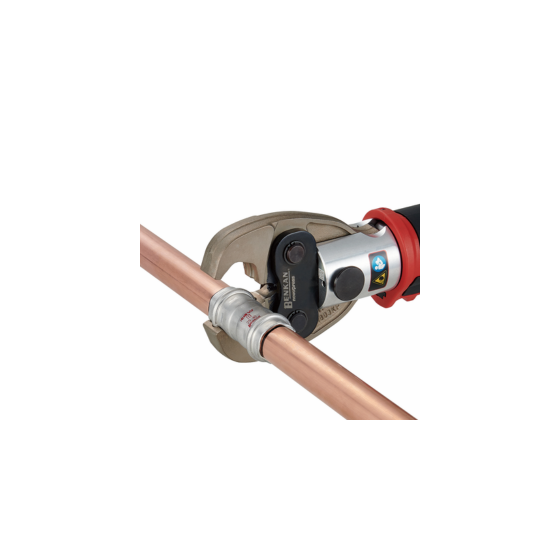

The refrigerant double press is a simple installation that involves inserting a refrigerant copper pipe marked with insertion dimensions and pressing it with a dedicated tightening tool. The joint body is made of stainless steel (SUS304) and is equipped with a rubber ring (hydrogenated nitrile rubber: HNBR) inside. There are grooves (grip edges) before and after the rubber ring, which provide strong pull-out resistance when pressed with the dedicated tightening tool. Features: 1. Labor-saving installation 2. No flame joint 3. Uniform installation possible
Inquire About This Product
basic information
【Scope of Application】 Usage: Refrigerant piping for air conditioners Applicable refrigerants: R32, R410A Connection method: Press-fit joints Joint material: SUS304 Rubber ring: HNBR Maximum operating pressure: 4.3MPa Refrigerant temperature: -40℃ to 130℃ Nominal diameter: 6.35 to 38.10 Applicable pipe types: JIS B 8607 Appendix A Table A.1 JCDA 0009, JCDA 0010 Quality type O, Quality type 1/2H
Price range
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
Purpose: Refrigerant piping for air conditioning
catalog（1）
Download All Catalogs
Company information
Since our establishment in 1947 as a manufacturer of welded pipe fittings, we have been involved in piping. Currently, we are advancing our business focused on sustainable piping, guided by a mission that aligns with the SDGs (Sustainable Development Goals) adopted at the United Nations Summit in 2015. (Mission Brand: SUSTAINABLE LIFELINE) Specifically, our business model primarily involves proposing stainless steel piping. Our headquarters and MJ factory are located in Ota City, Gunma Prefecture. We have six sales bases in Sapporo, Sendai, Tokyo, Nagoya, Osaka, and Fukuoka. Additionally, we have a manufacturing base overseas, Benkan Vietnam (100% investment). Together with over 400 employees, we aim to be a company worthy of the title "Benkan of Stainless Steel Piping."
