High Static Pressure Drain Trap for Special Air Conditioning Units

For air conditioning units with high static pressure that cannot be accommodated by standard A-trap products!

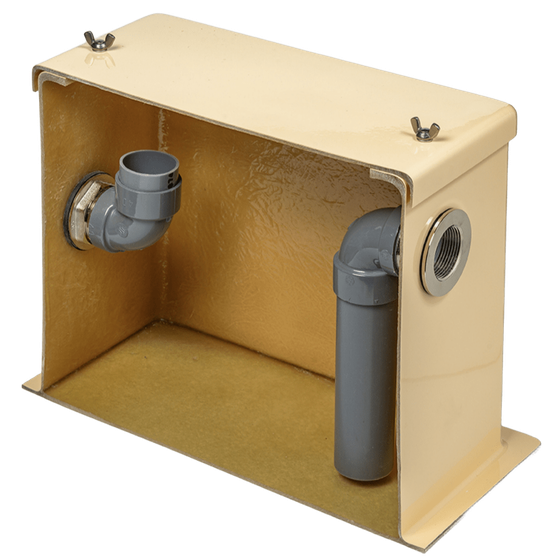

The high static pressure drain trap is an FRP drain trap designed to be installed in high static pressure air conditioning units in hospitals, research institutes, and factories. The standard model (Type A Trap P) can handle a static pressure of up to +1450Pa, but by significantly increasing the water seal height, it can accommodate: Medium-sized FRP body: total static pressure 0 to +2000Pa Large-sized FRP body: total static pressure 0 to +3000Pa. *The photo shows the medium-sized FRP body. Additionally, it can flexibly accommodate changes in the positions of the inlet and outlet, allowing for customization to fit the installation environment. By filling the inside of the body up to the top of the outflow side components and forming a water seal, it prevents air from escaping. *It is necessary to regularly replenish water during periods when drainage does not occur. 【Features】 ■ Rust-proof and rot-proof FRP body ■ Significantly increased water seal height compared to conventional products ■ Height adjustment for inlet and outlet is possible
