Hitachi Industrial Equipment Systems Energy Recovery System
Hitachi Industrial Equipment Systems
Recovery of unused hydraulic energy into electricity, energy recovery system using inline water turbines.

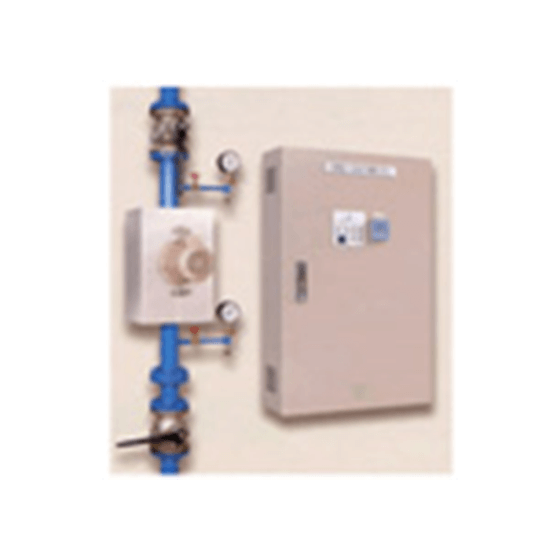

Overview There is energy available here as well. Would you like to utilize untapped hydro energy? Currently, as global efforts to address the issue of global warming are underway, there is a growing demand for the effective use of clean, untapped energy that has a low environmental impact and fewer resource constraints. Hitachi proposes an "Energy Recovery System" that recovers untapped hydro energy, which has been overlooked until now, into electrical energy using a power generation water turbine. The recovered electricity can be used to reduce the power for equipment or for various applications such as lighting and hot water supply. Since the revised Energy Conservation Act came into effect, the demand for energy conservation has been increasing. Hitachi responds to customer solutions with the Energy Recovery System. The "Energy Recovery System" achieves high-efficiency energy recovery through optimal rotational speed control of the turbine based on the effective head, and it adopts a generator-integrated inline turbine that can be installed in the middle of piping, realizing a compact and small design. This product, which combines our fluid technology, motors, and control technology, is characterized by its ability to achieve high recovery of untapped energy with the aim of reducing environmental impact. High efficiency with an energy recovery rate of approximately 60% For example, with an effective head of 35m and a flow rate of 2.8m³/min.
Inquire About This Product
basic information
- Recover unused hydraulic energy as electrical energy using a power generation water turbine. - High-efficiency recovery through optimal rotational speed control of the turbine according to the effective head (recovery rate approximately 60%, MAX 59%). - Example: Output of 9 kW with an effective head of 35 m and a flow rate of 2.8 m³/min. - Can be installed in the middle of piping with an integrated generator inline turbine, compact and small. - Supports DC transmission and single-phase/three-phase 200V AC transmission for grid connection, allowing for series and parallel operation of the turbines.
Price range
Delivery Time
Applications/Examples of results
It is used to recover unused hydraulic energy from the piping systems of buildings and facilities. It is suitable for energy-saving applications that recover power from pipes with a drop and flow, utilizing it for equipment power, lighting, and hot water supply.
Line up（5）
| Model number | overview |
|---|---|
| EBS F80H | |
| EBS F80M | |
| EBS F80L | |
| EBS F125H | |
| EBS F125M |
