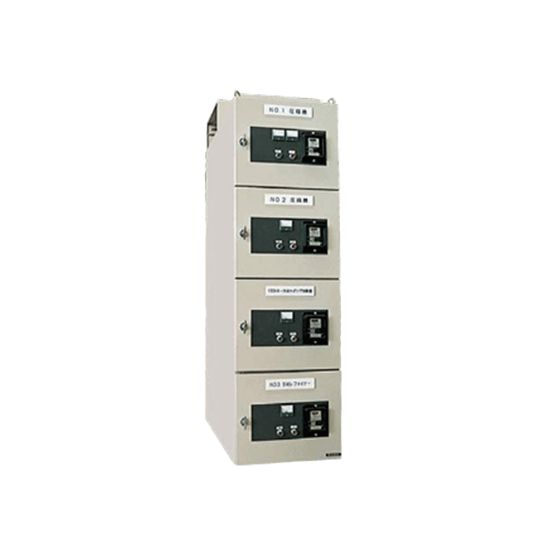

Hitachi Industrial Equipment Systems High-Pressure Combination Starter Pull-Out Type Combo
Hitachi Industrial Equipment Systems
Supports up to 300 kW, suitable for replacing existing systems with a drawer-type multi-stage combination.
Overview Ideal for the protection and switching control of high-voltage motors, capacitors, and transformers. Equipped with a multi-relay that has protection, measurement, and control ladder functions. The multi-relay can exchange information with upper-level devices via communication. In factories and plants, various equipment operates at the forefront of industry, each playing a crucial role. It is essential for the equipment to operate stably and efficiently at all times, necessitating devices that control and protect the switching of high-voltage loads such as high-voltage motors, transformers, and capacitors to prevent operational stagnation. The internal draw-out multi-stage 3kV class Hitachi high-voltage combination starter series offers a wide range of control systems to meet diverse applications. Utilizing Hitachi's advanced technology, these devices excel not only in safety but also in compactness and cost-effectiveness, contributing to the development of clean switching control devices that are environmentally friendly in the factory environments of a new era. The multi-relay-equipped Hitachi high-voltage smart combination starter series supports a wide range of fields with its extensive lineup. Multi-stage series Internal operation draw-out type for ease of maintenance and economic benefits. Features The 3kV class vacuum type offers variations of 2 to 4 stages.
Inquire About This Product
basic information
- Protection for high-voltage motors, capacitors, and transformers, with switching control - Equipped with multi-relay featuring protection, measurement, and control ladder functions - 3kV class vacuum type available in 2 to 4 stage variations, with a maximum application of 300kW - Structure that prevents the exposed bare charging part of the rear power supply unit (standard equipment) - Dimensions (3kV class): Width 600 x Depth 1,300 x Height 2,300
Price range
Delivery Time
Applications/Examples of results
It is used for opening and closing control and protection of high-pressure loads in factories and plants. It is suitable for replacement applications of existing panels that require space-saving through multi-tier stacking and maintainability.
