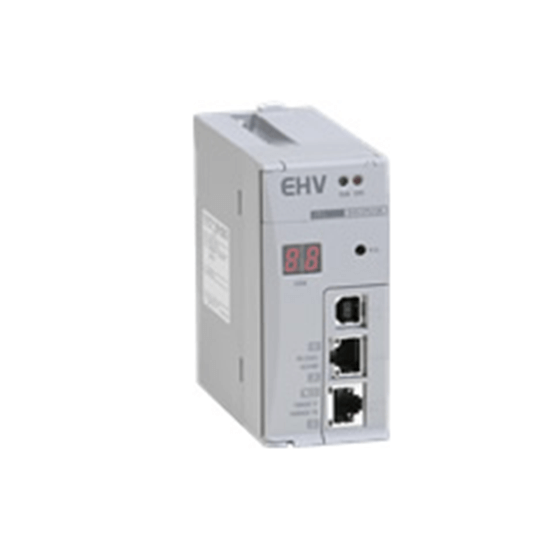

Hitachi Industrial Equipment Systems Programmable Controller EHV-CPU
Hitachi Industrial Equipment Systems
EHV series PLC with high-speed, high-capacity CPU and standard Ethernet, supporting large-scale control.
Overview High-speed, high-capacity CPU with standard Ethernet communication ports, EHV series. In addition to high-speed and high-function control of devices, network systems can also be realized. High-speed computation By equipping a high-speed computation processor, even advanced and complex control can be processed quickly. Equipped with two processors By incorporating a dedicated high-speed computation processor "EH-SPEED" and a main processor, both computation and communication achieve high-speed processing. Examples of high-speed computation The time from receiving an input signal from the outside to output is fast. Increased program capacity User program capacity is up to 128k steps (EHV-CPU128). Even complex and large-scale user programs can be programmed with ease, without worrying about remaining step counts. Comment storage function The area for storing program comments is set in a separate area from the program memory. There is no need to worry about remaining memory capacity when adding comments. User programs can fully utilize up to 128k steps (EHV-CPU128). FLASH memory User programs and comments are stored in FLASH memory. Even if the battery runs out, user programs are preserved.
Inquire About This Product
basic information
- Equipped with two processors: a high-speed computation dedicated processor "EH-SPEED" and a main processor - User program capacity of up to 128k steps (EHV-CPU128) - Maximum I/O points of 4,224, with a maximum of 66 modules that can be implemented - Standard equipped with three communication ports: Ethernet/USB/Serial (RS-232C/422/485) - Program and comment retention without a battery using FLASH memory
Price range
Delivery Time
Applications/Examples of results
It is used for high-speed and high-functionality control of various devices and production equipment. It is suitable for large-scale control systems that require network compatibility, such as centralized monitoring and data collection.
Line up（7）
| Model number | overview |
|---|---|
| EHV-CPR128 | |
| EHV-CPU128RP | |
| EHV-CPU64 | |
| EHV-CPU32 | |
| EHV-CPU32RP | |
| EHV-CPU16 | |
| EHV-CPU08 |
