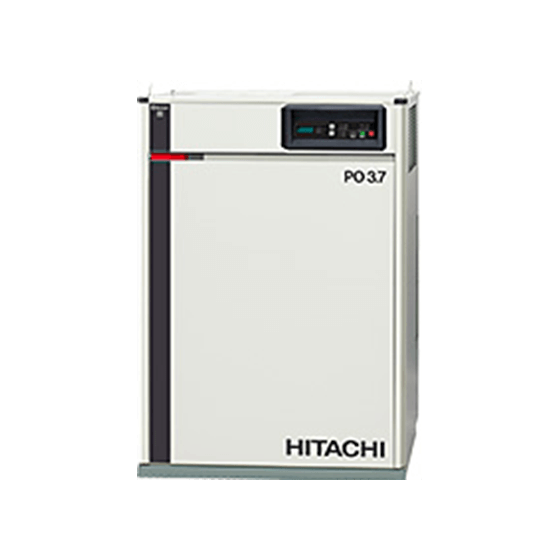

Hitachi Industrial Equipment Systems Drying Built-in Package Babycon (Oil Supply)
Hitachi Industrial Equipment Systems
A remote monitoring-compatible oil-filled baby con that supplies dry air with a built-in air dryer.
■Overview - Even when apart, you can see the operational status of the baby compressor. - Notifications to smart devices in case of abnormalities. - Monitor multiple connected baby compressors with a single smart device. ■Features - Standard equipped with a new feature: automatic drainage function for the dryer and air tank. - Abnormal vibration detection function for the compressor body. - Operation panel. - Integrated control of the compressor and air dryer, allowing easy selection of lead operation/simultaneous operation via the operation panel switch. - Standard equipped with external input/output terminals and terminals for connecting the baby compressor roller (BR-1M), supporting optimal number control according to pressure changes (for oil-free types only). - The PUSC control method is optimal for tasks with significant fluctuations in air usage. The microcontroller automatically selects and controls between "pressure switch type" and "automatic unloader type" based on the air usage. Additionally, it features an ECOMODE switching function for energy-saving effects. Other model numbers are also available.
Inquire About This Product
basic information
- Built-in air dryer (oil-injected) - Standard features include automatic drain discharge and abnormal vibration detection for the compressor unit - Energy-saving with PUSC control and ECOMODE switching - Output and specifications vary by model number. Please refer to the model number list.
Price range
Delivery Time
Applications/Examples of results
It is used in factories and manufacturing sites that utilize compressed air. Since it has a built-in dryer, it provides dry compressed air, making it suitable for pneumatic equipment that dislikes moisture, as well as for painting and conveying lines.
Line up（10）
| Model number | overview |
|---|---|
| PBD-1.5MNB5 | |
| PBD-2.2MNB5 | |
| PBD-3.7MNB5 | |
| PBD-5.5MNB5 | |
| PBD-7.5MNB5 | |
| PBD-11MNB5 | |
| PBD-1.5MNB6 | |
| PBD-2.2MNB6 | |
| PBD-3.7MNB6 | |
| PBD-5.5MNB6 |
