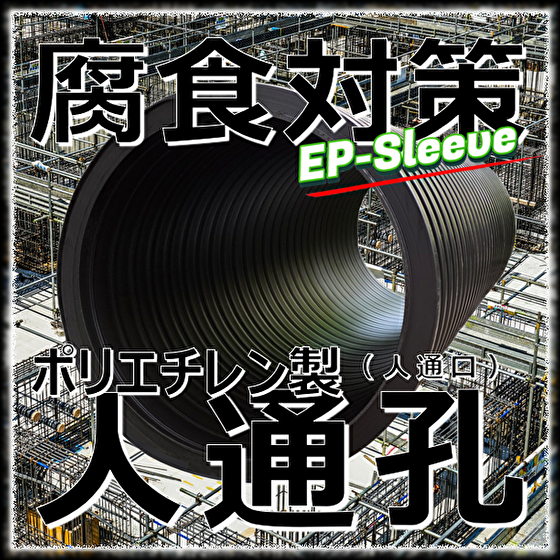

Rainwater storage tank: Underground pit repurposed with all-resin polyethylene access hole.

basic information

【Features】 - Made of non-corrosive all polyethylene, suitable for submerged environments. - Expected lifespan of approximately 30 to 50 years, contributing to longevity. - Compared to rigid PVC pipes at approximately 53kg/m, the EP sleeve weighs about 17kg/m, significantly improving the efficiency of transportation and installation work. <Specifications> (This product is based on nominal inner diameter) - EP-600 Inner diameter: 600 / Outer diameter: 700 (mm) Reference weight: approximately 17kg/m *EP-700 Inner diameter: 700 / Outer diameter: 816 (mm) Reference weight: approximately 23kg/m *EP-800 Inner diameter: 800 / Outer diameter: 938 (mm) Reference weight: approximately 29kg/m [Basic manufacturing length: Minimum 300 to maximum 1900mm] ■Only for EP-600, we also accept manufacturing lengths over L=1900mm. Please consult us in advance■ Note 1) The allowable tolerance for the inner diameter of the pipe is ±1.5%. Note 2) The cutting tolerance for the pipe is manufacturing length -5mm to 0mm. Note 3) *Sizes are not part of regular stock items. Please confirm the manufacturing lead time in advance. ▲Please consider the reinforcement of the sleeve pipe's internal space based on the concrete pouring speed, pouring height, mouth diameter, and beam width at each construction site before use▲

Price range

Delivery Time

Applications/Examples of results

"Are the beam height and beam width of buildings trending towards extension?" - Responding to high-rise and large space development - Evolution of seismic and vibration control technologies - Diversification of building uses - Securing equipment space These are said to be the possible factors, but on the other hand, the current construction sites are facing numerous challenges such as labor shortages, aging workforce, and a lack of skilled workers. We urgently need to achieve "labor-saving" and further realize "manpower-saving" by proposing the "lightweight" of human passage sleeves. "Lightening the burden on the site with technology and ideas!" ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ■ We also offer labor-saving products for electrical equipment, such as underground beam sleeves ■ 'Waterproof sleeve for underground exterior walls, "Pipe-in-Sleeve" (abbreviated as PIS)' "Labor-saving construction for underground beam penetration! Ensuring the waterproof performance of buildings!" For the underground exterior wall, we apply "waterproof treatment" in advance at the factory to the PVC sleeve and the surrounding space of the E-flex (FEP), delivering it as prefabricated. There is no troublesome work required on-site, and after installation, it is basically "just joint connection." This ensures stable waterproofing! Improving work efficiency realizes "labor-saving" for flood prevention and water resistance. Please download from the related catalog.

Detailed information

•

  Setup Image 1

•

  Setup Image 2

•

  Setup Image 3

•

  Setup Image 4

•

  Setup Image 5

•

  Setup Image 6

•

  Setup Image 7

•

  Setup Image 8
