Easily set up and teach "e-VEE" from your tablet!

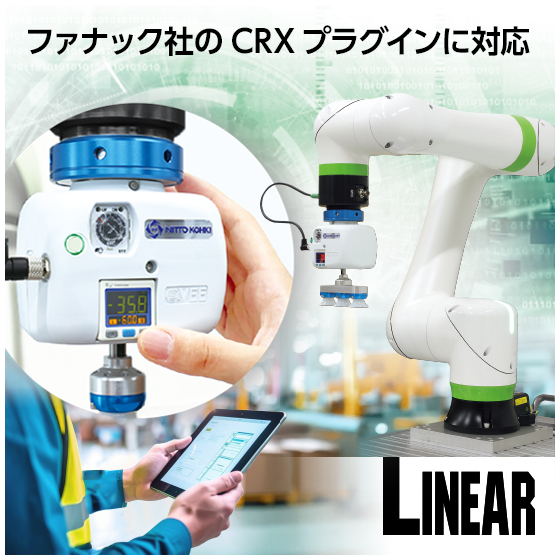

The electric suction hand "e-VEE" is an end effector for robots that is useful for suction transport. Recently, its compatibility with FANUC's collaborative robot "CRX" has been further enhanced. By using plugin software, it is easy to create programs from the tablet TP (teaching pendant). Additionally, it is equipped with a compact vacuum pump, eliminating the need for external air supply. Since it does not use a compressor, it significantly reduces the power required for suction transport. Compared to ejectors with equivalent capabilities, it achieves up to 77% power savings. ■ Features 【Energy-saving】Pump automatically stops with pressure sensor 【Vacuum holding function】No compressor air needed 【Easy connection】No need for hose routing 【Quiet】No air discharge noise 【Clean】No external air inflow 【Input/output signal method】Selectable PNP/NPN
Inquire About This Product
Related Videos
basic information
【Specifications】 Maximum vacuum pressure: -66.6 kPa (-500 mmHg) Air discharge volume: 7.5 L/min Rated pressure: DC24V Power consumption: 14.4W (instantaneous maximum value during use) Size: W104×D96×H80 Weight: 《EVE-500-NK》 body only: 0.92 kg, with installation: 1.08 kg 《EVE-500-KOM, EVE-500-KO》 body only: 0.94 kg, with installation: 1.13 kg Input/output signal method: PNP method/NPN method
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
The Nitto Kohki Group supports comfortable living and a prosperous tomorrow across a wide range of fields, from construction sites to the aerospace industry and environmental maintenance projects. In response to increasingly diverse needs, we address them with exceptional engineering that promotes rationalization and labor-saving. We develop unique and user-friendly new technologies as tools to connect to the next generation.
