Retaining wall construction, accident prevention, retaining wall measurement, inclination monitoring system.
Automating slope measurement at low cost! (NETIS registered product)
Introducing Sonas' "Wireless Tilt Monitoring System" (NETIS Registration Number: KT-230117). - Automates measurements using optical surveying, piano wire, and plumb lines. - Significantly reduces costs compared to automatic measurements using total stations. - Quickly sends email alerts in case of anomalies such as exceeding management values (can be linked with warning lights). - Allows remote monitoring of measurement values, zero adjustment settings, and management value settings via computer or tablet. ■ Features - The inclinometer operates on batteries for about one year. - Measurement resolution of 0.001°. - Angle ⇔ displacement conversion function. ■ Amazing Aspects - Simply install and turn on the switch to automatically start measurement and recording. - Wireless operation eliminates complicated wiring work. - Monitoring can be done from the office without going to the site. ■ Benefits - Reduces the effort of manual measurement, recording, and monitoring. - Allows for immediate awareness of any anomalies. This system is available for sale, rental, and W rental. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Components】 ■Tilt Sensor Unit (Required Quantity) ■Gateway (1 unit) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results

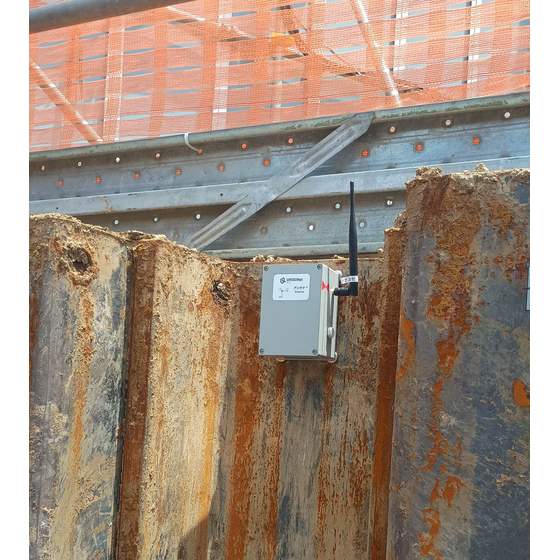

【Applications】 ■ Bridge construction and repair work (monitoring of bent and bridge girder inclinations, etc.) ■ Retaining wall construction (displacement measurement of retaining walls and steel sheet piles) ■ Shaft and thrust construction, embankment work (dynamic observation of slopes and embankments) 【Examples】 https://www.sonas.co.jp/example *For more details, please refer to the PDF materials or feel free to contact us.
catalog（5）
Download All Catalogs
Company information
Sonas is a venture company originating from the University of Tokyo, with its core technology being the independently developed IoT wireless system "UNISONet." UNISONet is the world's first wireless technology to successfully apply industrial use through an innovative transmission method called "simultaneous transmission flooding." By making IoT "easy," UNISONet dramatically accelerates its social implementation, overcoming the challenges that have significantly limited its application areas. The name "Sonas" is derived from the phrase meaning "to lay the foundation." Sonas's mission is to enable various industries to benefit from IoT as a matter of course, thereby propelling society forward.
