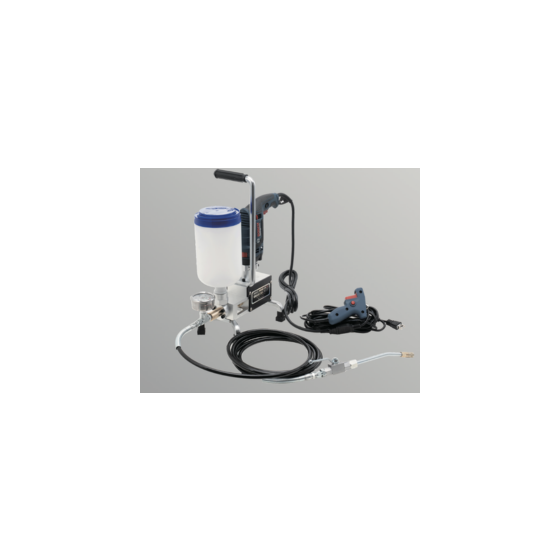

Single Line high-pressure injection Pump SWM-10JP
A single-component pump primarily designed for leak prevention. It is lightweight and easy to use, enhancing the efficiency of on-site work. (Electric, wireless controller type, battery-operated)
Inquire About This Product
basic information
【Features】 - Easy-to-use pressure switch - Easy attachment and detachment of the cylinder - Simple cleaning and maintenance 【Delivery Scope】 Drive unit, pressure gauge unit (0~700bar) High-pressure hose (Nitta Moore, NO.03, Φ4.8mm) 5m 2L semi-transparent resin tank 【Specifications】 Cylinder diameter: φ9mm Pressure gauge for injection gun is optional Compatible materials: Epoxy resin Polyurethane resin Foamed polyurethane foam (SPUR foam) 【Technical Data】 Operating pressure (bar): 0～450 Maximum discharge volume (ℓ/min): 0.45 External dimensions (Width / Depth / Height): 18 / 38 / 48 cm Power supply / Motor output: AC100V 50-60Hz / 750W
Price range
Delivery Time
P3
※The delivery date may vary depending on the quantity, so please contact us for more details.
Applications/Examples of results
This is a one-component pump primarily designed for leak prevention.
