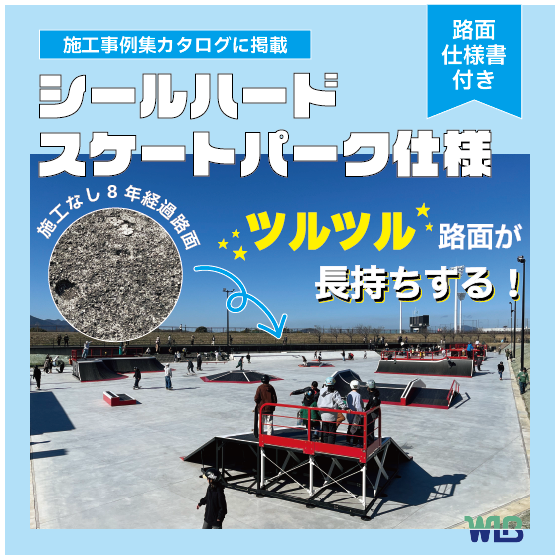

Large-scale renovation: Hinai Shape Park Skateboard Park
Seal Hard Skate Park Specification
Over 20 years since its opening! The major park filled with repairs is undergoing a huge transformation!
The "Kainigata Park Skateboard Park" located in Kyoto City, Kyoto Prefecture, was established over 20 years ago. It features a main park with a bank surface and a quarter pipe, covering approximately 1000m2. It is a well-known park with a long history in Japan. However, due to its location next to a riverbed, the ground has been prone to movement, resulting in a surface that was heavily damaged and in need of repairs. Despite this, many people continue to come and skate, and it is loved by enthusiasts from all over the country. For the existing repair areas, special repair materials were used, and a large American-made grinding machine was employed to grind down the rough concrete surface. The quarter pipe and bank surface were hand-ground using a handheld grinder. A smooth surface was created, and further improvements were made with a penetrating surface hardener "Seal Hard" and a water absorption inhibitor "Aqua Pel Plus" to enhance wear resistance and rainwater durability. Finally, a test run was conducted on the skateboard to ensure proper grip. The surface not only returned to a smooth finish but was also completed as a long-lasting surface with wear resistance and rainwater durability! The Kyoto City Skateboard Association expressed their excitement, saying, "This surface is amazing!" Many skaters came during the opening, and we received numerous voices of joy!
Inquire About This Product
basic information
The "Seal Hard Skate Park Specification" is a construction method product provided through the following steps 1 to 4. [Patent pending] ◆1. Concrete Grinding (for renovation only) The roughened concrete surface is shaved down to remove surface irregularities. ◆2. Concrete Polishing For newly installed concrete: Smooth out trowel marks, trowel lines, and fine irregularities on the surface to create a smooth surface without roughness. For renovated concrete: Further smooth out grinding marks and fine irregularities from the surface that has been made even in the previous step, creating a smooth surface without roughness. ◆3. Penetrating Surface Hardener Seal Hard This is a concrete surface hardener that "penetrates" rather than "coats." It provides strong dust resistance and wear resistance to the concrete. By not creating a film on the concrete surface and densifying the internal layer, it results in a concrete floor finish that is free from peeling. ◆4. Water Absorption Inhibitor (Water Repellent) Aquapel Plus This is a concrete surface water absorption inhibitor (water repellent) that "penetrates" rather than "coats." By not creating a film on the concrete surface and imparting water-repellent properties to the internal layer, it maintains water absorption inhibition effects for a long time as long as the surface does not wear down.
Price information
The price varies depending on the construction area and the roughness of the surface. For more details, please contact us.
Delivery Time
※The construction period may vary depending on the construction schedule and area, so please contact us for more details.
Applications/Examples of results
"Skate Park Achievements" - Nagao Skate Park (Sanuki City, Kagawa Prefecture) - Sumida Skateboard Park (Sumida Ward, Tokyo) - AKAKEN PARK (Kanazawa City, Ishikawa Prefecture) - NiX Urban Sports Park (Toyama City, Toyama Prefecture) - Green Park Daimon Skateboard Square (Imizu City, Toyama Prefecture) - Toyo Carbon Urban Sports Park (Marugame City, Kagawa Prefecture) - Ibaraki Electric Construction Skateboard Park Ishioka (Ishioka City, Ibaraki Prefecture) - Chausuyama Skate Park (Nagano City, Nagano Prefecture) - Gruun Gamagori Skate Park (Gamagori City, Aichi Prefecture) - Skate Park within the Miyoshi Town Hall Grounds (Miyoshi Town, Saitama Prefecture) - Musashino Park Skateboard Square (Fuchu City, Tokyo) - Wakamiya Oodori Park Skate Park (Nagoya City, Aichi Prefecture) - Oku Biwa Sports Forest Skateboard Park (Nagahama City, Shiga Prefecture) - Skate Park Oobu (Oobu City, Aichi Prefecture) - Osawa Comprehensive Ground Skateboard Area (Mitaka City, Tokyo) - Awaji City Skateboard Park (Awaji City, Hyogo Prefecture) - Sagamihara Gion Urban Sports Park (Sagamihara City, Kanagawa Prefecture) Others / 4 cases
Detailed information
-
Grinding the surface damaged by rainwater with a large grinder made by American STI Company.
-
Handy grinding The unevenness of the bank section is ground with a special handy grinding machine.
-
Surface grinding: A diamond blade is mounted on a large grinding machine to remove the weak surface layer in advance and achieve a smooth finish.
-
Handy Grinding The bank section is polished with a special handy grinding machine.
-
Repair and polishing: Areas with severe damage will be repaired and then polished to a smooth finish.
-
【Seal Hard Application】 We will apply the penetrating concrete surface hardener "Seal Hard." With the effect of Seal Hard, the concrete surface will gradually harden and transform. Since Seal Hard is a non-film-forming penetrating type, it will not peel off. However, penetrating hardeners are vulnerable to rainwater; when exposed to rain, the penetrating components can dissolve and wash away.
-
Cleaning
-
【Application of Aquapel Plus】 The penetrating water-repellent agent "Aquapel Plus" will be applied. By applying Aquapel Plus, we compensate for the weaknesses of seal hard that are vulnerable to rain, transforming it into strong, rain-resistant concrete. Since it is a non-film-forming penetrating type, it will not peel off.
-
[Test Run Confirmation] If too much Aqua Pearl Plus is applied, the grip will weaken, causing side slipping during turns. Therefore, a staff member skilled in skateboarding will actually perform a test run on a skateboard to check the resistance while sliding and the grip during turns. If any issues are found during the confirmation, adjustments will be made through re-polishing or other methods.
catalog（6）
Download All Catalogs![[Seal Hard - Skate Park Specification] Concrete surface finish suitable for skate parks | Wear-resistant | Water absorption suppression | Long lifespan](https://image.www.ipros.com/public/catalog/image/01/558/693096/IPROS44690527504882566076.jpeg?w=120&h=170)
![Seal Hard Skate Park Specifications [Design Price List]](https://image.www.ipros.com/public/catalog/image/01/5b5/795655/IPROS1552997852609110194.jpeg?w=120&h=170)
CAD data（1）
| Model number | overview | File |
|---|---|---|
| Standard Drawing for Skate Park Surface Specifications | The "Seal Hard Skate Park Specification" is a construction method provided in the following steps 1 to 4. [Patent pending] ◆1. Concrete grinding (for renovation only) ◆2. Concrete polishing ◆3. Penetrating surface hardener Seal Hard ◆4. Water absorption suppressor (water repellent) Aquapel Plus This is a pavement specification created based on past achievements. Please feel free to copy and use it when designing future skate parks. |
|
