Easily IP-enable your audio broadcasting system! No CPU, no server, no hacking issues. The reliable and safe VoIP for business chosen by the field.
Ideal for industrial voice network broadcasting (VoIP)! Our "VOICE-IP TERMINAL II" is designed entirely in hardware. It features extremely fast startup since it does not use a CPU. Even if you turn the power OFF/ON during broadcasting, it will start broadcasting within seconds. Additionally, there is no damage to the device. Naturally, since it does not implement an OS or application software, there are absolutely no issues such as hacking (rewriting or takeover) or software bugs. The high reliability is a point of pride for our devices. Device Overview - Supports one-way communication (broadcast) in a 1-to-N configuration. - Can transmit to a maximum of 60 receivers (up to 60 units). - The device is configured as a transmitter or receiver, along with IP address settings, using the included setup application. - Once set, the information does not disappear even when the power is turned off. It can also be rewritten as many times as needed. - Equipped with LINE-IN/OUT terminals. Connect the audio source device to the LINE-IN terminal and an amplifier-equipped speaker to the LINE-OUT terminal to start network broadcasting immediately. Custom solutions for two-way communication and more are available. Please contact us directly.
Inquire About This Product
basic information
Achieve a low-cost, large-scale simultaneous announcement broadcasting system! By utilizing the existing network, there is no need for wiring work to replace the aging audio broadcasting network. This device converts analog audio signals to ETHERNET and has the capability to convert audio data received over the LAN back into audio band signals. Since continuous operation is possible through direct connection, there is no need for exchanges or servers, allowing for an inexpensive audio broadcasting system to be constructed over a LAN. Additionally, by converting audio signals and contact signals to Ethernet, long-distance transmission and reception are also possible. 【Features】 - Extremely small, lightweight, and compact: 130(W) × 97(D) × 32(H) - Converts analog audio to IP, enabling long-distance communication - System configuration possible without a server (no server maintenance required) - Easy system construction using existing networks with IP method - Simple installation with no configuration needed after setting IP addresses on terminal devices - Fanless operation with natural air cooling, high reliability - Customization available to meet customer needs *For more details, please download the PDF or feel free to contact us.
Price range
P2
Delivery Time
Applications/Examples of results
■Achievements ・Certain racetrack facilities: Used for business broadcasting to staff at each location (WAN) ・Certain plant factory: Added as a voice broadcasting system to the existing surveillance camera network (LAN) ・Certain plant factory: Newly adopted during the replacement of the on-site analog broadcasting system (LAN) ・Certain research institute: Emergency calls in areas with high surrounding noise (LAN) ・Certain manufacturer: Used for business broadcasting at each location (WAN) ・Certain floodgate facility: Used for emergency evacuation broadcasting (disaster prevention broadcasting) (LAN) ・Defense-related facilities: Medium-scale simultaneous broadcasting system (LAN/WAN) ・Certain newspaper company: Used for internal business broadcasting purposes *Since the device does not generate high heat internally, there are no heat dissipation slits on the main body of the device. It is a product that is also resistant to harsh environments such as dust! *For more details, please download the PDF or feel free to contact us.
Detailed information
-

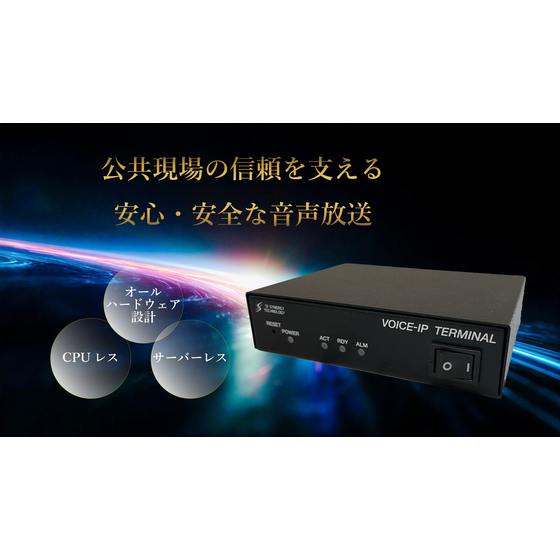

"VOICE-IP TERMINAL2" Device Front Image Size: 130(W) × 97(D) × 32(H) mm, excluding protrusions (Hand-held size)
catalog（2）
Download All Catalogs
Company information
SI Synergy Technology Co., Ltd. consistently handles everything from contract development to manufacturing of equipment groups for social infrastructure systems and supercomputers, which require high social relevance, advanced reliability, and performance, receiving high praise from our customers. Utilizing our strengths in communication technology, embedded software technology, and FPGA technology, we proactively respond to changes with a sense of speed, meeting our customers' trust. We are engaged in contract development and manufacturing for terrestrial digital broadcasting, dam rivers, and railways, as well as the development, manufacturing, and sales of our own AI and IoT-related products, centered around ICT-related development technologies. We are a proactive group of engineers specializing in core technologies such as embedded CPUs, FPGAs, IP, and deep learning technology.
