Can be retrofitted to existing digital tachographs | Anti-drowsy driving | Alarmy

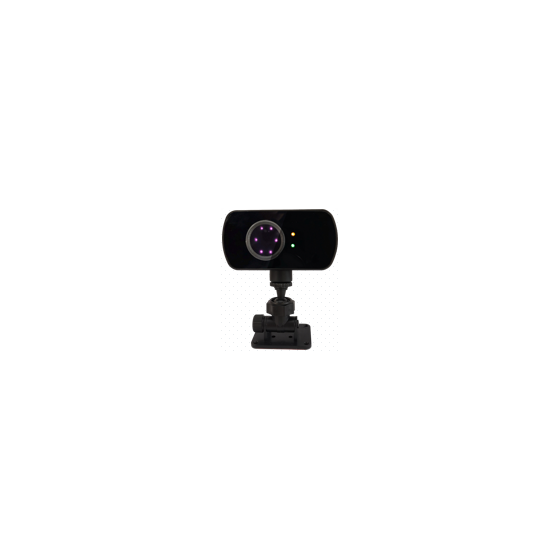

Alami FPE-900
External output of 'AI judgment results'. An edge analysis module that enhances existing operation management systems at low cost.
An edge analysis device equipped with a unique AI algorithm. Drowsy driving prevention device "Alarmee" Enables advanced operation management through integration with digital tachographs and dash cameras. ■ Digital Tachograph Integration (RS232C) Real-time transmission of detection data for drowsiness, distraction, smoking, etc. Visualizes and centrally manages "when, where, and who" engaged in unsafe behavior on the office management screen. ■ Dash Camera Linkage (I/O Output) Sends AI detection signals to the dash camera's external input. Automatically saves the moment dangerous behavior occurs as an "event video." Supports efficient verification processes and reliable evidence management. Facilitates integration with existing in-vehicle networks and management systems. 【Technical Points】 - Serial Integration: Real-time external output of detection event logs via RS232C port. - Signal Output: Equipped with I/O output terminals, allowing hardware integration with patrol lights, external buzzers, and third-party communication devices. - Standalone Operation: Achieves high-speed response without communication delays through edge computing that completes analysis within the device.
Inquire About This Product
basic information
CPU: ARM + AI DSP chip Power Consumption: 12–24V, 1mA, or 5V 1mA Audio: 1.5W speaker output Camera: 12-bit DVP camera interface Indicator: Power operation display, alarm display Connectors: USB, cigarette plug, RS232, CVBS USB: 1 micro USB port for 5V input and app settings SD Card: Up to 128G Communication Protocol: RS232C (baud rate configurable), I/O output Video Output: CVBS compatible (external output to in-vehicle monitors, etc.) Operating Temperature: -20℃ to 70℃ Operating Humidity: 20% to 90% (no condensation) Storage Temperature: -40 to 85℃ Storage Humidity: 10% - 95% (no condensation) Recording Medium: Continuous/event recording via SD card (up to 128GB) Detection Targets: Closed eyes, yawning, distraction, phone calls, smoking, unregistered, camera obstruction, etc.
Price range
P2
Delivery Time
P3
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
- Integration into our in-house developed operation management system and linkage with control systems for special vehicles. - Pin assignments and communication protocols are currently available in the specification document. * For more details, please refer to the PDF materials or feel free to contact us.
Detailed information
-
Type of alert
-
Workflow
-
External device connection image
-
Description of each section
