Automate palletizing operations with zero initial investment! "Toyo Aika Collaborative Palletizing Robot"
The "Toyo Aika Collaborative Palletizing Robot" is a world-class collaborative robot designed to handle heavy loads, combining high safety, excellent efficiency, and outstanding cost performance. In Japan, San-ei Electronics is the official distributor. We alleviate any concerns before implementation with a free trial of up to one month. From trial to installation and operation, we provide comprehensive support for your palletizing automation. Four reasons why the Toyo Aika collaborative palletizing robot is chosen: ● Free trial service One month free! Available from anywhere in the country. ● Overwhelming cost performance - Safety × high performance × easy-to-implement price - Realistic for small to medium-sized factories ● Starts operation in 5 minutes; no specialized knowledge required - Simple operation by following on-screen instructions - Just input the size of the cardboard and pallet - Stacking layout is automatically generated ● Flexibility to change settings according to the site (available for models with a payload capacity of 20 to 60 kg) - Free setting of pallet patterns - Adjustable loading conditions and speed - Easy to adapt to changes in production lines * The model available for the free trial service is the TA-MD30Pro (with a payload capacity of 30 kg).
Inquire About This Product
basic information

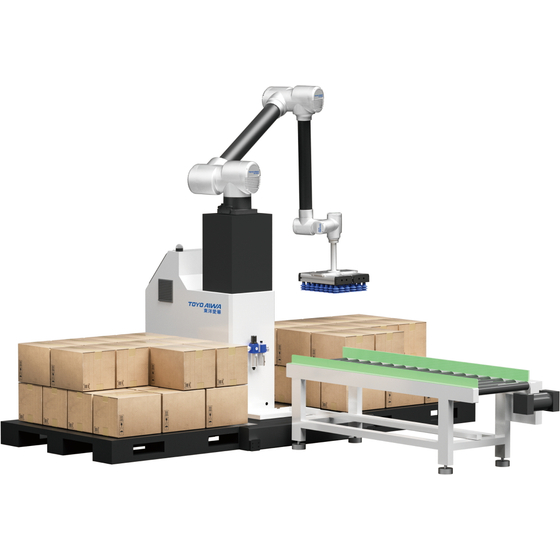

Category by Purpose 【Pro Series】 5-axis Fixed Standard Model Maximum Palletizing Height: 2,100mm Four types of payload models (20kg to 40kg) available Recommended for medium to low stacking heights / first-time automation 【Max Series】 6-axis Lifting High Payload Model Maximum Palletizing Height: 2,600mm Six types of payload models (20kg to 60kg) available For high payloads / heavy items / production lines considering future expansion Product Parameters (30kg Payload Model) Model: TA-MD30Pro Payload: 30kg Operating Radius: 1900mm Number of Axes: 5-axis Fixed Maximum Palletizing Height: 2100mm Palletizing Speed: ≦9pcs/min Repeat Positioning Accuracy: ±0.04mm Communication Method: TCP/IP Protection Rating (IP): IP54 Operating Temperature Range: 0 to 55℃ Maximum Power Consumption: 3kW Power Supply: Single-phase 220V±10% 50/60Hz Body Weight: Approximately 350kg Installation Area: 1505mm × 1716mm Operational Area: 3150mm × 1716mm Minimum Ceiling Height: 2.8m
Price range
Delivery Time
Applications/Examples of results
Food and Beverage Industry Stable palletizing of heavy case products such as mineral water. Food Industry Efficient automatic loading of products with consistent cardboard sizes, such as instant items. Printing Industry Prevents load collapse of color box products and contributes to stable shipping quality. Medical Industry Safe and careful palletizing of lightweight to medium-weight products such as medicine bags. Beauty and Cosmetics Industry Smooth operation is possible even in environments with frequent product changes.
catalog（1）
Download All Catalogs
Company information
San-ei Electronics Co., Ltd. is an electronic components trading company established in 1968. We sell electronic components such as capacitors, which stabilize voltage and can store and discharge electricity, and inductors, which can store energy in a magnetic field formed by current. We also engage in product development and contract manufacturing in collaboration with over 50 partner manufacturers both domestically and internationally. We are sales agents for companies such as Murata Manufacturing Co., Ltd. and Rohm Co., Ltd. In recent years, we have expanded our offerings beyond electronic components to include individual products, tackling solutions for changing social environments across various industries, including heat countermeasure products, cleaning robots, and transport robots. Please feel free to contact us with any inquiries.
