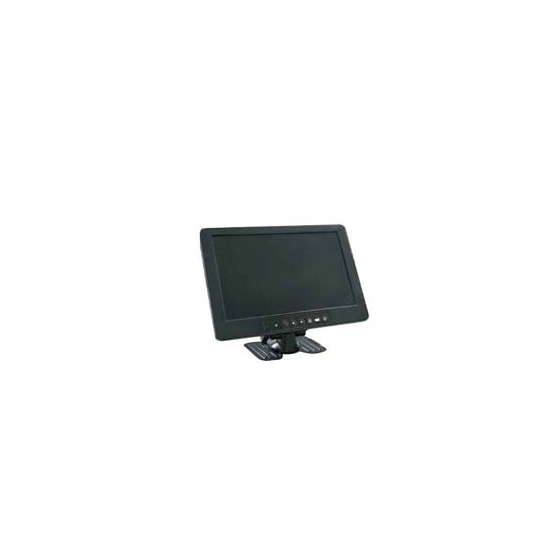

10.1-inch LCD monitor JCH-L101AP-2HVB-AT compatible with AHD/HD-TVI/HDCVI/composite video input!
The JCH-L101AP-2HVB-AT is a 10.1-inch LCD monitor that supports AHD/HD-TVI/HDCVI/composite video input. - It supports high-resolution analog video (AHD/HD-TVI) up to 5MP (HDCVI up to 4MP). Note that AHD/HD-TVI/HDCVI is automatically recognized, and only one input can be used at a time. - AHD/HD-TVI/HDCVI can be re-output from the active through output terminal. - It also supports composite video input (NTSC/PAL). - The monitor has a high resolution of 1280×800 in a 10.1-inch size. - It uses a long-lasting, low-power consumption LED backlight. - The screen is bright and easy to see at 350cd. - It is equipped with audio input terminals and speakers. - The lightweight and easy-to-handle casing is made of plastic. - A camera bracket can be used (with a 1/4-20UNC screw hole at the bottom of the monitor). - An infrared remote control and power adapter are included.
Inquire About This Product
basic information
Model Number: JCH-L101AP-2HVB-AT Screen Size: 10.1-inch wide Backlight: LED Panel Resolution: 1280×800 Aspect Ratio: 16:10 Maximum Brightness: 350cd Input Resolution: AHD/HD-TVI; 720p/1080p 25/30Hz, 4MP 15/25/30Hz, 5MP 12.5Hz HDCVI: 720p/1080p/4MP 25/30Hz Composite: 50/60Hz Video Output: AHD/HD-TVI/HDCVI: 1 active through output 1.0Vp-p 75Ω BNC female Audio Input: Mono 1 channel input RCA female ×1 Speaker: Speaker ×1 (2W) AHD/HD-TVI/HDCVI Switching: Automatic recognition (Composite: NTSC/PAL automatic recognition) Stand: Included (removable) Power Supply: DC12V (Power adapter DC12V 2A included) Power Consumption: Maximum 9W Operating Temperature Range: 0–40℃ External Dimensions: 253(W)×178(H)×34.7(D)mm *excluding stand
Price range
P3
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
The JCH-L101AP-2HVB-AT is a 10.1-inch LCD monitor that supports AHD/HD-TVI/HDCVI/composite video input. It is convenient for directly inputting video from analog HD/composite surveillance cameras for display on the monitor.
