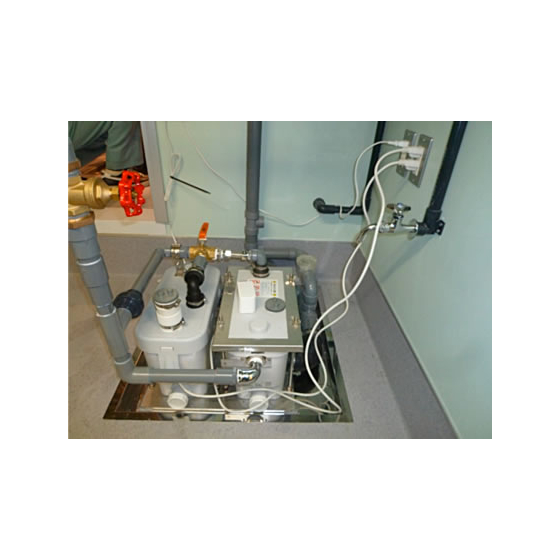

Case Study of Pressurized Drainage Pump Unit in a Café within a Commercial Facility
Introducing a case that resolved the issues of drainage pipe construction and the stubborn dirt problem of milk fat!
We would like to introduce a case where the "Mixed Waste NPBC (ZA-100NPBC)" was adopted in a café located in a complex commercial facility (shopping mall). The tenants of the facility did not have drainage equipment, and the existing drainage pipes were located beyond the passageway. This posed a challenge as significant construction work, such as raising the floor of the passageway, was necessary to connect the kitchen's drainage pipe to the existing drainage pipe. We proposed a product with a backup function for pump failure and a cleaning function, as the drainage contained a high amount of milk fat. The piping route utilized the ceiling, with the discharge pipe raised 3 meters and routed horizontally in the ceiling to connect to the existing drainage pipe. 【Case Overview (Partial)】 ■ Installation Location: Café within a commercial facility ■ Model: Mixed Waste NPBC (ZA-100NPBC) ■ Connected Equipment: Shallow grease trap (30L, connected to sink, hand wash basin, and dishwasher) *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Summary of Other Cases (Partial)】 ■Issues <Requests> - Design a café for a tenant on the first floor of a mixed-use commercial facility (shopping mall). - It seems that using the Smart Pump N series can solve problems without spending time or costs, but I am unsure about the precautions for installation and which model to choose. ■Proposal Details <Key Points for Design and Construction> - Since there are no other drainage facilities, we propose a product with a backup function for pump failure and a cleaning function, as the drainage contains a high amount of milk fat. - Utilize the ceiling space for the piping route, raising the discharge pipe 3 meters and running it horizontally in the ceiling to connect to the existing drainage pipe. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（3）
Download All Catalogs
Company information
We sell products that have been processed from the SFA Sanipump series (SFA pumps) manufactured by SFA, with the approval of SFA, primarily for business use to simplify maintenance. We have sold over 4,000 units in total! We also provide model selection, installation advice, and maintenance services.
