The cordless drill "Atora Ace CLO-2725" is now available in a body-only type (battery sold separately)!

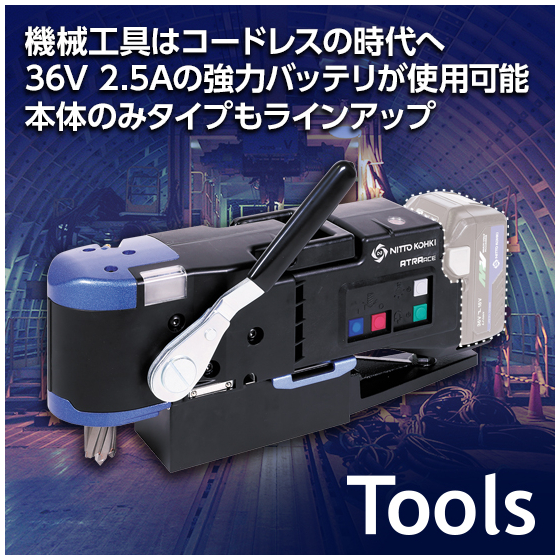

The "Atla Ace CLO-2725(NN)" is a cordless portable magnetic drilling machine compatible with jet broaches of 20L and 25L, suitable for diameters from φ11.5 to φ27mm. This model is the body-only type (battery sold separately). If you already have a battery (BSL36A18/BSL36B18/BSL36A18X/BSL36B18X), you can attach it to this product for use. 【Features】 ● Full height of 150mm fits H-shaped steel of 200mm ● Equipped with a convenient LED light for drilling ● Safety features included (Supports drilling with plate thickness detection, load detection, and body lift detection functions) 【Standard Accessories】 Feeding handle: 1 piece Pilot pin A1 (08025): 1 piece Oiler: 1 piece Tube 4×7×1000: 1 piece Hexagonal rod wrench 4: 1 piece Hex socket screw rod tip 8×28: 1 piece Cutting fluid 0.5L: 1 can Belt lashing: 1 piece Wrench 14: 1 piece Wrench 7×9: 1 piece
Inquire About This Product
Related Videos
basic information
【Specifications】 No-load rotation speed: 820 min-1 Drilling capacity: Jet broach one-touch type 20L φ11.5 to φ13.5, plate thickness: up to 20mm Jet broach one-touch type 25L φ14 to φ27, plate thickness: up to 25mm Minimum plate thickness for magnet adhesion: 6mm Maximum stroke length: 40mm Maximum magnetic force: 5,500N (561kgf) Magnet dimensions: 65mm × 145mm Position adjustment range: Left-right movement 10mm, front-back movement 10mm Body weight: 8.3kg
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
