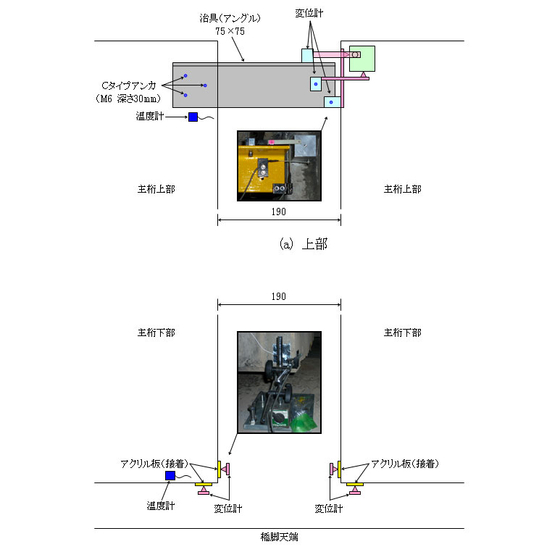

Developed a 3-axis displacement gauge to measure the displacement of the ultra joint in the 3 axes (XYZ directions)!
We would like to introduce "Measurement of the Behavior of the Ultra Joint." To measure the three-axis (XYZ direction) displacement of the Ultra Joint, we have developed a three-axis displacement gauge. This three-axis displacement sensor is a combination of three Tokyo Sokki's displacement gauges (CE-10). The capacity is 10mm, and the resolution is 1/500mm. 【Overview】 ■ Developed a three-axis displacement gauge to measure the three-axis (XYZ direction) displacement of the Ultra Joint ■ The three-axis displacement sensor is a combination of three Tokyo Sokki's displacement gauges (CE-10) ■ Capacity is 10mm, resolution is 1/500mm *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
