The relationship between the obtained load and deflection allows us to understand the integrity of the beam!

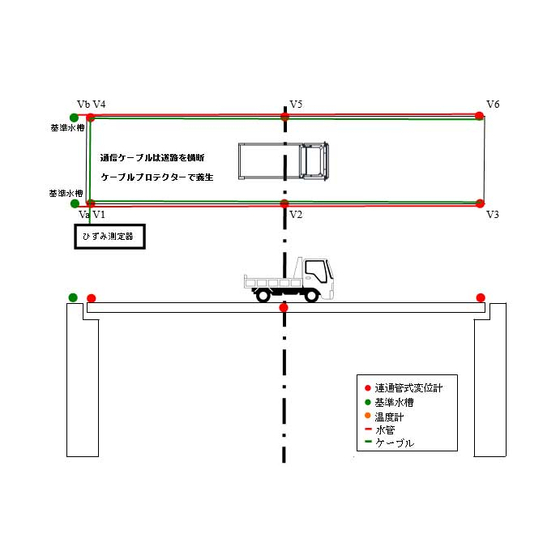

The "static load test of bridges" is conducted to evaluate the integrity of the girder. The testing method involves placing a known test vehicle at the center of the span and measuring the deflection of the girder at that time. From the relationship between the obtained load and deflection, the integrity of the girder can be assessed. Here, we introduce a method using a communicating tube type displacement gauge for measuring the deflection of the girder. 【Features】 ■ The deflection of the girder can be measured with a resolution of 1/20 mm. ■ The communicating tube type displacement gauge can be installed on top of the girder, making it easy to work with. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（4）
Download All Catalogs
Company information
Our company is a measurement consultant capable of visualizing situations through various data analyses, starting with the measurement of structures and ground, and creating measurement technologies and analytical methods, as well as developing various systems. In a wide range of areas including dynamic characteristic surveys, measurement management services, construction and maintenance of monitoring systems, and system development services, we constantly aim for innovative technology development and services, proposing solutions tailored to our customers' needs.
