Is it possible for everyone to enjoy!? Musashino Park Skateboard Plaza
Seal Hard Skate Park New Construction Specifications
A very popular park that attracts many skaters from outside the prefecture!
The "Musashino Park Skateboard Plaza" has reopened in Fuchu City, Tokyo. It was originally established but closed in January 2024 due to safety concerns. The renovated park features a combination of modular sections and concrete sections! The modular sections are movable and have a short construction period, while the concrete sections allow for complex designs, combining the best aspects of both. The park is made up of smaller sections, attracting attention as a space that can be used by beginners to advanced skaters. It is more of a "park for everyone" rather than just a "competition park," drawing many skaters from outside the prefecture. Thanks to the improvement of the park's surface, we received positive feedback from users who expressed a desire for similar work to be done on their local parks! Additionally, I feel that we have contributed to creating a safe environment for users, thanks to the efforts of local enthusiasts. I hope you can check out the YouTube videos from those who have actually used the park at the URL below.
Inquire About This Product
Related Videos
basic information
The "Seal Hard Skate Park Specification" is a construction method product provided through the following steps 1 to 5. [Patent pending] ◆1. Concrete Grinding (for renovation only) The rough concrete surface is shaved down to remove surface irregularities. ◆2. Concrete Polishing For newly installed concrete: Smooth out trowel marks, trowel lines, and fine irregularities on the surface to create a smooth finish without roughness. For renovated concrete: Further smooth the surface that has been made even from the previous grinding process, eliminating grinding marks and fine irregularities to create a smooth finish without roughness. ◆3. Penetrating Surface Hardener Seal Hard This is a concrete surface hardener that "penetrates" rather than "coats," ensuring it is free from peeling. It provides strong dust resistance and wear resistance to the concrete. ◆4. Water Absorption Inhibitor (Water Repellent) Aquapel Plus This is a concrete surface water absorption inhibitor (water repellent) that "penetrates" rather than "coats." It exhibits water absorption inhibition effects over a long period. ♦5. Test Run Confirmation Our company has actual construction personnel who skateboard. Due to the delicate nature of the work, where the amount applied and the finish can vary at each site, we confirm by actually skating. *If any abnormalities are found, adjustments will be made on the spot.
Price information
The price varies depending on the roughness of the surface and the area of construction. Please contact us for more details.
Delivery Time
※The construction period may vary depending on the construction timing and area, so please contact us for more details.
Applications/Examples of results

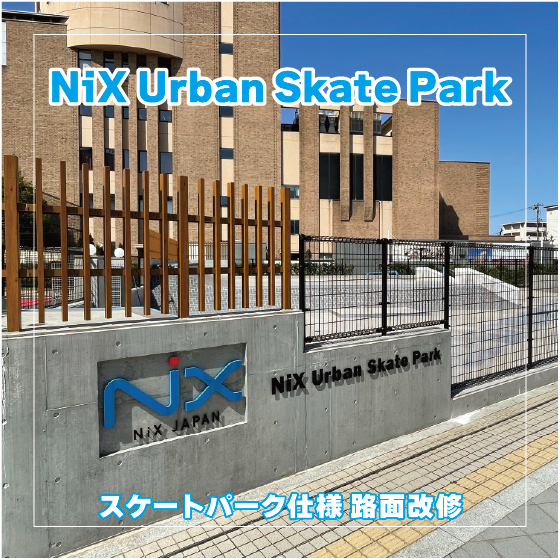

"Skate Park Achievements" - Higashi Kanazawa Sports Square Skate Park (Kanazawa City, Ishikawa Prefecture) - NiX Street Sports Park (Toyama City, Toyama Prefecture) - Sasebo Park Skateboard Park (Sasebo City, Nagasaki Prefecture) - Nagao Skate Park (Sanuki City, Kagawa Prefecture) - Sumida Skateboard Park (Sumida Ward, Tokyo) - AKAKEN PARK (Kanazawa City, Ishikawa Prefecture) - NiX Urban Sports Park (Toyama City, Toyama Prefecture) - Green Park Daimon Skateboard Square (Imizu City, Toyama Prefecture) - Nitto Shin Stadium Maruoka Skateboard Square (Sakai City, Fukui Prefecture) - Toyo Carbon Urban Sports Park (Marugame City, Kagawa Prefecture) - Ibaraki Electric Construction Skateboard Park Ishioka (Ishioka City, Ibaraki Prefecture) - Chausuyama Skate Park (Nagano City, Nagano Prefecture) - Gruun Gamagori Skate Park (Gamagori City, Aichi Prefecture) - Miyoshi Town Hall Skate Park (Miyoshi Town, Iruma District, Saitama Prefecture) - Musashino Park Skateboard Square (Fuchu City, Tokyo) - Wakamiya Oodori Park Skate Park (Nagoya City, Aichi Prefecture) - Oku Biwa Sports Forest Skateboard Park (Nagahama City, Shiga Prefecture)
Detailed information
-
Surface polishing makes the roughness of the surface smooth and easy to slide.
-
【Seal Hard Application】 The penetrating concrete surface hardener "Seal Hard" will be applied. With the effect of Seal Hard, the deteriorated concrete will gradually harden and transform. Since Seal Hard is a non-film-forming penetrating type, it will not peel off. However, the penetrating hardener is vulnerable to rainwater; when exposed to rainwater, the penetrating components can dissolve and wash away.
-
Surface cleaning Residual treatment of surface hardeners
-
[Aquapel Plus Application] The penetrating water absorption suppressor "Aquapel Plus" will be applied. While Aquapel Plus may seem unnecessary for indoor skate parks, it is essential for adjusting grip even indoors.
-
【SSP-100 Joint Filler】 The polyurea resin-based concrete joint filler "SSP-100" is a fast-setting concrete joint filler. By filling and protecting the joints, it prevents damage to the joint areas.
-
[Test Run Confirmation] If too much Aqua Pearl Plus is applied, the grip will weaken and cause slipping during turns. Therefore, a staff member skilled in skateboarding will conduct a test run on a skateboard to check the resistance while sliding and the grip during turns. If any issues are found during the confirmation, adjustments will be made through re-cleaning with a polisher or polishing.
catalog（3）
Download All Catalogs![[Seal Hard - Skate Park Specification] Concrete surface finish suitable for skate parks | Wear-resistant | Water absorption suppression | Long lifespan](https://image.www.ipros.com/public/catalog/image/01/558/693096/IPROS44690527504882566076.jpeg?w=120&h=170)
CAD data（1）
| Model number | overview | File |
|---|---|---|
| Standard Drawing for Skate Park Surface Specifications | The "Seal Hard Skate Park Specification" is a construction method provided in the following steps 1 to 4. [Patent pending] ◆1. Concrete grinding (for renovation only) ◆2. Concrete polishing ◆3. Penetrating surface hardener Seal Hard ◆4. Water absorption suppressor (water repellent) Aquapel Plus This is a pavement specification created based on past achievements. Please feel free to copy and use it when designing future skate parks. |
|
Company information
The Wilby Building Materials Division is a professional group specializing in sports facility construction and flooring finishing work. 【Building Materials Division】 ● Sports Facility Business: Centered in Hokuriku and Niigata, we engage in specialized construction related to sports facilities such as swimming pools and gymnasiums, as well as flooring work for various facilities. ● Building Sales Business: We provide high-value flooring products that are not available in conventional offerings, such as scratch-resistant flooring "Cattina" and natural wood composite flooring "Alpito." ● Good Floor Business: As the domestic importer of concrete chemical products from the U.S. company LATICRETE, we offer various concrete flooring solutions, including "Seal Hard." ● Environmental Business: We propose and sell installation services for products such as "Painted Insulation Material Gain," "Cool Roof," "Seismic Ceiling WILL-TEC Method," and "Nano Zone Coat." 【Construction Division】 We construct numerous low-cost steel frame buildings for logistics facilities such as distribution centers and warehouses, as well as commercial facilities like supermarkets, home centers, drugstores, and fashion malls throughout Japan. We provide consistent services tailored to customer needs, including land development, design, and comprehensive construction.
