Pneumatic metal diaphragm valve with manual override feature
Hybrid Pro series (HYP)
Pneumatic metal diaphragm valve with manual override feature
The Hybrid Pro series is an Ultra-Clean Valve designed for high reliability and extended cycle performance. With a long cycle life and stable flow coefficient, it is ideal for ultra-high purity applications in semiconductor wafer manufacturing processes. A built-in manual safety mechanism ensures secure operation and prevents hazardous situations. FEATURES AND BENEFITS: - Extended Service Life – Reduces downtime and mainte nance costs - Consistent Flow Coefficient– Maintains stable throughout the life of the valve - Manual Safety Mechanism – Enhanced mechanism that prevents unintended operation of the valve - Pneumatic valve with manual override – Saves cost by using one valve instead of two RELIABILITY: - Validated to 10M cycles of pneumatic operation - Validated to 10K cycles of manual override operation
Inquire About This Product
basic information
- MAWP: 150 psi - MAWT: 60°C - Flow Coefficient: Cv 0.3 - Seat material: PCTFE - Leak rates: - Inboard: ≤ 3x10-11 atm cc He/sec - Across the seat: ≤ 1x10-9 atm cc He/sec - Pneumatically operated: Hybrid N.C. - High quality UHP valve body construction: SST 316L VAR Electropolished (Ra 5μin Finish) - Surface-Mount 1.125” C-Seal type
Price range
Delivery Time
Applications/Examples of results
- Gas boxes on a process tool - Gas delivery systems - Tool install modules - Vessels and bubblers

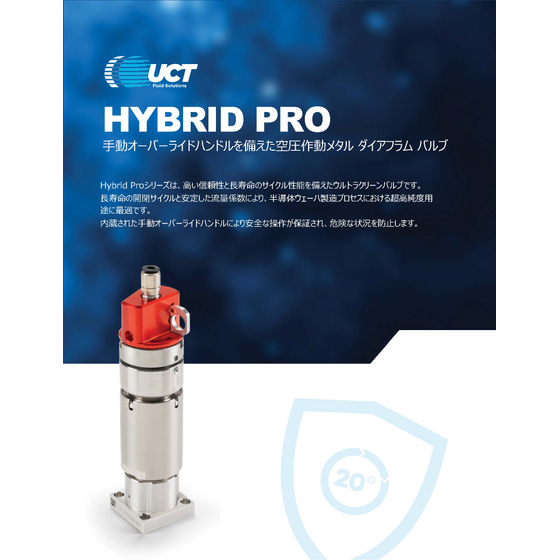

catalog（1）
