Achieve clear communication even in multiple floors and wide areas. Easily expand your communication area with the specific low-power repeater, UBZ-R51, connected via LAN!

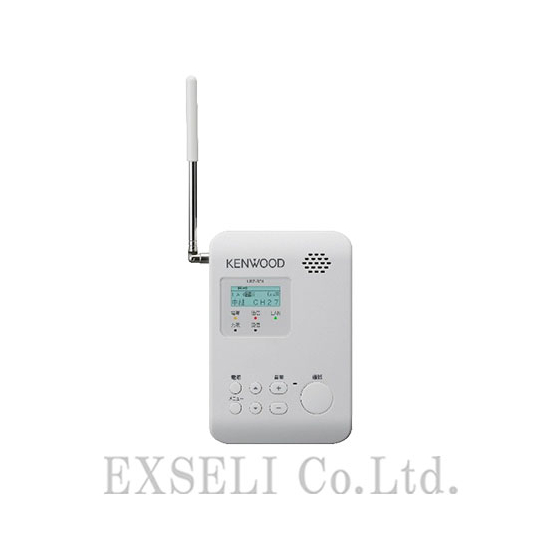

● The UBZ-R51 (UBZR51) is a specific low-power relay manufactured by JVC Kenwood. ● It is an indoor specific low-power wireless relay compatible with 27 channels. ● By using this product, the communication range of Kenwood specific low-power transceivers can be extended. ● It can be connected via LAN cable, allowing up to 6 units of "UBZ-R51" to be connected in LAN, enabling relay communication over multiple floors or wide areas. This makes wireless communication across multiple floors possible. ● It features a full-dot display that supports hiragana, katakana, and kanji characters. The settings are easy to see at a glance, significantly reducing the time required for configuration. ● When connected via LAN, it can be easily configured using a PC, and detailed settings can be operated according to the on-screen prompts. ● The power supply can be used in two ways: (1) It can be powered from a household AC 100V source using the included AC adapter. (2) It can be powered by a separately sold lithium-ion battery UPB-8L. ● It adopts a 130mm long antenna that can rotate 360 degrees, supporting high gain and wide-range relaying. *For more details, please feel free to contact us.*
Inquire About This Product
basic information
● This is the successor to the UBZ-RJ27. ● This product does not have dust and water resistance, so please be careful when using it outdoors. ● Accessories - AC adapter - Wall mount bracket - LAN connector cap - Warranty card with simple instruction manual ● Specifications - Dimensions: Height approximately 150mm × Width approximately 100mm × Depth approximately 35mm (excluding protrusions) - Antenna length: 130mm (length from the rotating part to the tip) - Weight: Approximately 300g (excluding AC adapter and optional battery) - Number of channels Relay: 27ch (When operating as a base station) Half-duplex: 20ch Relay: 27ch - Frequency range: 400MHz band - Transmitting power: 10mW / 1mW (1/10mW switchable only when set to channels 1-18) - Waveform type: F3E - Frequency stability: ±4 ppm - Speaker output (internal, external) Internal output: 400mW or more (8Ω load, 10% distortion) External output: 90mW or more (8Ω load, 10% distortion) - Power supply voltage: DCIN terminal DC5.5V - Operating temperature range: -10℃ to +50℃ (Charging operation: 5℃ to 40℃)
Price information
Manufacturer's suggested retail price: Open price *We aim to sell at a lower price than anywhere else, so please inquire about our selling price.
Delivery Time
Applications/Examples of results
【Examples of Use】 ■ Nursing facilities ■ Movies, TV shows, commercials, filming ■ Sports management ■ High school athletic associations ■ New and used car dealerships ■ Showrooms, exhibition halls, sales venues ■ Golf courses ■ Restaurants ■ Sushi shops ■ Manga cafes ■ Security ■ Cafes ■ Construction ■ Comic Market and events ■ Amusement facilities ■ Childcare centers, nursery schools, kindergartens ■ Shareholder meetings ■ Moving ■ Hotels and inns ■ Esthetic salons ■ After-school programs ■ Factories ■ Movie theaters and cinema complexes ■ Exhibitions ■ Warehouses ■ Gas stations ■ Osteopathic clinics, chiropractic clinics, treatment rooms ■ Maintenance workshops, etc.
