Leave it to us for analyzing internal defects and creating 3D data!

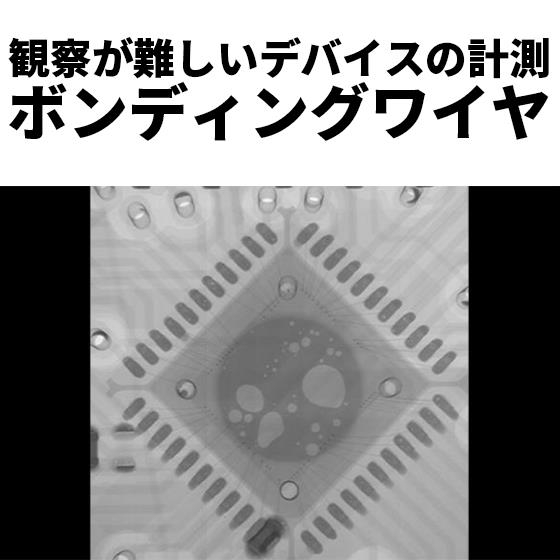

Material: Printed Circuit Board Observation Range: 5 x 5 (mm) The image shows the condition when observing bonding wires. Bonding wires are thin metal wires used as connection materials in semiconductors. We have visualized issues such as joint defects and flow rate calculations, which are considered difficult to evaluate with standard measuring instruments. At Castem, we offer CT scan services using the Nikon MCT225. We can either hold your samples or allow you to scan them with our staff accompanying you. By performing a CT scan, it becomes possible to analyze internal defects, create 3D data, and measure internal dimensions. If you are interested, please feel free to contact us.
Inquire About This Product
basic information
【Equipment Overview】 Nikon Solutions MCT225 Imaging Method: Cone Beam CT X-ray Source: 225kV Microfocus Tube Maximum Tube Output: 225W Maximum Focus Diameter: 3μm Imaging Magnification: 1.6× to 150× Resolution: 1.33 to 125μm X-ray Detector: 16bit 4M Pixel Flat Panel Detector (FPD) Maximum Sample Weight: 50kg (maximum 5kg during dimensional evaluation) 【Transmission Capability】 There are limitations on transmission capability depending on the material. Resin: 170mm Aluminum: 70mm Titanium: 45mm Iron: 15mm Heavy Metals: Not suitable for imaging
Price range
Delivery Time
Applications/Examples of results
For more details, please feel free to contact us through our website or other means.
catalog（2）
Download All Catalogs
Company information
With a posture of "just half a step" without complacency, we have cultivated "lost wax precision casting" over many years. In 1991, we obtained a U.S. patent for "MIM (Metal Injection Molding)." Utilizing 3D printing technology, we offer next-generation precision casting technology called "Digital Cast." We provide optimal proposals through various technologies! We thoroughly support our customers' manufacturing processes! We specialize in complex three-dimensional shapes in small lots of various types and carry out everything from mold making to casting, machining, and simple assembly in-house. We supply products to various industries, including medical devices, semiconductors, machine tools, and aerospace. "Just make it, from one piece." We can propose a wide range of manufacturing methods from prototype production of one piece to mass production. We enable time savings in searching for various suppliers and considering consultation destinations, becoming a true total cost reduction partner by proposing reductions in management costs associated with consideration time and product costs. More than half a century ago, Castem's casting began with handmade machine tools. Today, we have become a company with the top domestic share in the manufacturing of general industrial parts using lost wax and are also engaged in the production of micro lenses and micro needles using the world's highest precision 3D light shaping technology.
